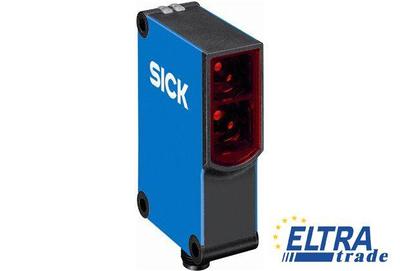

Sick WTB27-302641S08 Photoelectric Sensors W27

Sick WTB27-302641S08
Item Number: WTB27-302641S08
  • Precise background suppression with no scanning distance drift
  • PinPoint technology: intense red LED with consistent light spot
  • Resistant to ambient light, optical reflections, and crosstalk from other photoelectric devices
278.42
Quantity
-
+
Total price: 278.42
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1029141
Circuit protection:A, C, E
Special features:With semiconductor relay 24 VDCWith semiconductor relay 24 VDC, Sensing range potentiometer fixed with glueSensing range potentiometer fixed with glue, Sensing range preset at 250 mm on an object with 18 % remission
Optics material:PMMA
Wave length:660 nm
Switching current (switching voltage):100 mA (20 V AC), 100 mA (30 V DC)
Ambient operating temperature:-40 °C ... 60 °C
Protection class:II
Adjustment:Potentiometer fixed with glue
Ripple:≤ 5 Vpp
Dimensions (W x H x D):24.6 mm x 80.6 mm x 54 mm
Power consumption:≤ 50 mA
Housing material:ABS, Plastic
Type of light:Visible red light
Switching frequency:200 Hz
Connection type:Connector Q6, 6-pin, AC/UC-coding
Ambient storage temperature:-40 °C ... 75 °C
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Light spot size (distance):Ø 15 mm (500 mm)
Sensing range max.:100 m ... 250 mm, 30 mm ... 1,100 mm
Special device:+
Response time:≤ 3 ms
UL File No.:NRKH.E181493 & NRKH7.E181493
Supply voltage:10 V DC ... 30 V DC
Housing design (light emission):Rectangular
Weight:120 g
Enclosure rating:IP 65
Switching output:Semiconductor relay
Light source:LED
Sensing range:100 mm ... 250 mm
