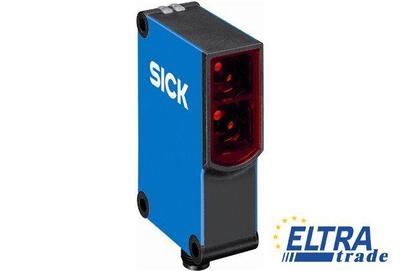

Sick WTB27-3P2461S24 Photoelectric Sensors W27

Sick WTB27-3P2461S24
Item Number: WTB27-3P2461S24
  • Precise background suppression with no scanning distance drift
  • PinPoint technology: intense red LED with consistent light spot
  • Resistant to ambient light, optical reflections, and crosstalk from other photoelectric devices
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1045976
Signal voltage PNP HIGH / LOW:Approx. VS - 2.5 V / 0 V
Switching frequency:350 Hz
Switching output:PNP
Connection type:Connector M12, 4-pin
Sensing range:100 mm ... 2,000 mm
Adjustment:Potentiometer
Circuit protection:A, B, C
Housing design (light emission):Rectangular
Special feature:Focused optics
Optics material:PMMA
Sensing range max.:30 mm ... 2,000 mm
Protection class:II
Special features:Focused optics
Power consumption:≤ 35 mA
Type of light:Visible red light
Output function:Complementary
Special device:+
Ambient storage temperature:-40 °C ... 75 °C
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Weight:100 g
Supply voltage:10 V DC ... 30 V DC
Output current Imax.:≤ 100 mA
Switching mode:Light/dark switching
Ambient operating temperature:-40 °C ... 60 °C
UL File No.:NRKH.E181493 & NRKH7.E181493
Enclosure rating:IP 69K
Dimensions (W x H x D):24.6 mm x 80.6 mm x 54 mm
Light spot size (distance):Ø 5 mm (500 mm)
Light source:PinPoint LED
Response time:≤ 1.5 ms
Housing material:ABS, Plastic
