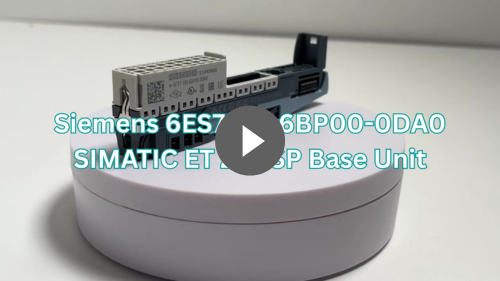

Siemens 6ES7193-6BP00-0DA0
SIMATIC ET 200SP Base Unit

Siemens 6ES7193-6BP00-0DA0
In Stock

IN STOCK!

    Base Unit for SIMATIC ET 200SP

    • BU15-P16+A0+2D
    • BU type A0
    • push-in terminals
    • without aux. terminals
    • new load group
    • WxH: 15 x 117 mm
    Item Number: 6ES7193-6BP00-0DA0
    25.00
    -
    +
    Total price: 25.00
    The price is not final. Please check with the manager!
    Contact our experts
    • Overview
    • Comments

    IN STOCK!

      Siemens BU15 P16 A0 2D BaseUnit for SIMATIC ET 200SP.

      Siemens 6es7193 6bp00 0da0 base units are mounted on a standard DIN rail and are close to each other and to the interface module. Thanks to this installation, the high mechanical strength of the entire structure is ensured. Also, the base units form the internal buses of the station and allow you to connect its external circuits. In this case, I/O modules are installed on the base blocks. The type of the installed module determines the assignment of the contacts of the terminal box of the base unit.
      To provide various options for connecting sensors and actuators, the station allows the use of base blocks of various types.

      Siemens 6ES71936BP000DA0 Datasheet:

      • BU type A0,
      • push-in terminals, without auxilary terminals,
      • new load group,
      • Size (w x H): 15 x 117 mm.
      • Functional standard (HW): From version FS06
      • Rated value DC: 24 V
      • There is external fuse protection for the supply lines. Modular circuit breaker for line protection 24 V/10 A (type B or C)
      • Maximum load capacity for busbars P1 and P2 (maximum): 10 A
      • Maximum permissible load for process clamps (max): 2 A
      • Number of nests: 1, Type A0
      • Galvanic isolation between potential blocks: yes
      • Insulation tested: 707 VDC current (type test)
      • Ambient temperature: -30... +50 °C
      • Presence of a built-in surge filter: Yes
      • Weight: 40g
      • Width: 15 mm
      • Height: 117 mm
      • Depth: 35 mm
      193 6bp00 0da0 Characteristics:
      LKZ_FDB/ CatalogIDST76
      Product Group4520
      Group CodeR151
      Country of originGermany

      Siemens base units (including 6es71936bp000da0) provide the ability to form the required configurations of the ET 200SP station, improve the convenience of its maintenance, eliminate the need to dismantle external circuits when replacing modules.

      The main characteristics of these units are:

      • Connecting conductors to snap contacts without using a tool. The conductors can be removed using a standard 3.5mm screwdriver.
      • They have color marking of contacts of terminal boxes, thanks to which errors are excluded when working with the station.
      • Possibility to replace I/O modules during operation without dismantling from external circuits.
      • They have convenient access to contacts, as well as minimal requirements for mounting volumes.
      • It is possible to start the station with an incomplete configuration (with missing I/O modules).
      • They have high resistance to electromagnetic influences such as shielded internal bus, multi-layer conductive shielded plates for signal transmission from the terminal to the I / O module, compact elements for connecting shields of connecting cables.
      • It is possible to form tires of a potential group without external binding with wires or adapters.
      • There is an automatic coding of peripheral modules, which eliminates the possibility of errors when replacing them.
      • It is possible to install base units close to each other, which increases the overall mechanical strength of the station.
      • Optional use of identification labels and frames with color marking of terminal box contacts in accordance with the color code (CC) of the peripheral module.
      • There is a removable terminal box.
