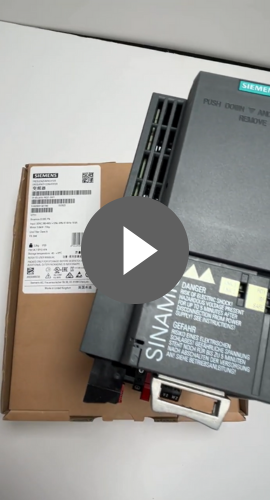

Siemens 6SL3210-1KE21-3AF1
SINAMICS G120C Drive
IN STOCK!!!
Frequency Drive
- SINAMICS G120C
- RATED POWER 5,5KW
- WITH 150%
- OVERLOAD FOR 3 SEC
- Overview
- Comments
IN STOCK!!!
6sl3210 1ke15 8af2 is a part of Sinamics G120C frequency converter family. It has a compact size and a monoblock design.
The range of Sinamics G120C drives is produced at power from 0.55 to 132 kW. They are intended primarily for OEMs and differ by compact drive dimensions and high functionality. A total of three sizes of G120C drives are available to customers. The Siemens G120C drive supports the main interfaces for data exchange. If you need to quickly copy parameters, you can easily do this using the BOP and IOP operator panels or using the MMC memory card. Use the Sizer and Starter programs to set the drive parameters using a PC. The G120C is connected to a PC via USB. When mounting several transducers, wall-to-wall mounting is allowed. The frequency drive has vector control without OC sensor and automatic flow reduction with ECO V/f.
Supply voltage three-phase 380 V ± 10%, power range from 0.55 to 132 kW.
Control modes - vector control, V/f, V/f ECO. The drive has 6 digital and 1 analog inputs, as well as 2 digital and 1 analog output.
6sl32101ke158af2 Datasheet:
- Famiily: SINAMICS G120C
- Rated Power: 5,5 KW (with 150% overload for 3 sec)
- Number of phases: 3 AC
- Voltage: 380 ... 480 V (+10 % -20 %)
- Frequency range: 47-63HZ
- INtegrated Filter Class A
- Rated current (High): 12.80 A
- Rated current (Low): 16.50 A
- Digital inputs: 6
- Digital outputs: 1
- Pulse frequency: 4 kHz
- SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN
- Protection: IP20
- Open Type
- Size (H x W x D): 196 x 100 x 225,4
- External Voltage: 24V
Siemens 6sl3210 1ke15 8af2 Features:
EAN | 4042948663844 |
UPC | 887621143985 |
Commodity Code | 85044084 |
LKZ_FDB/ CatalogID | D11.1SD |
Product Group | 5673 |
Group Code | R220 |
Country of origin | Great Britain |
