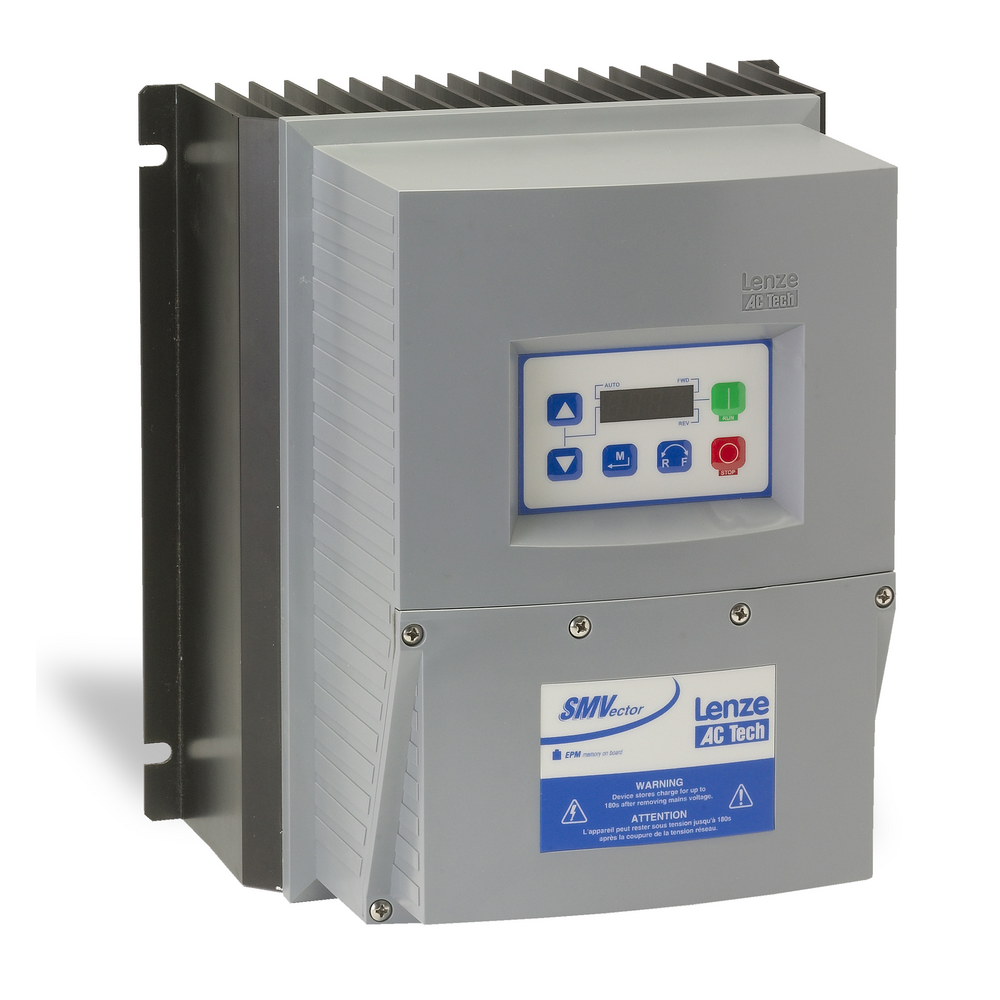

Lenze SMVector

esv152n02yxb

  • Type of cooling: Convection
  • Operating temperature range: -10°C ... +40°C
  • Storage temperature range: -25°C ... +70°C
  • Degree of protection: IP20
  • EMC: EN 61800-3:2004
  • Certificates: CE, UL, CSA

esv371n01sxb

Inputs/outputs:

  • 1 analog input (0-10 V)
  • 1 analog output (0-10 V)
  • 4 digital inputs
  • 2 digital outputs
  • 1 RS-485 port

esv371n01sxc

  • Control method: Sensorless Vector Control
  • Rated torque: 1.8 Nm
  • Overload capacity: 150% for 60 seconds
  • Switching frequency: 2-16 kHz
  • Energy efficiency: IE3
  • Noise level: <50 dB
  • Certificates: CE, UL, CSA

esv552n02txb

Digital inputs:

  • 1 x Start/stop
  • 3 x Programmable (4 x for models 15 hp (11 kW) and above)

Digital outputs:

  • 1 x Form A relay
  • 1 x Open collector

Analog inputs:

  • 1 x Voltage (0-10 VDC)
  • 1 x Current (4-20 mA)

esv752n02txb

  • Analog inputs: 2 pcs, 0-10 V, 4-20 mA
  • Digital inputs: 4 pcs.
  • Relay outputs: 2 pcs.
  • Analog output: 1 pc, 0-10 V
  • Communication ports: RS-485

Frequency inverter drives SMV esv402n04txb - drive unit with vector management

Frequency inverter drives SMV esv751n04txb - drive unit with vector control

  • SMV ESV752N04TXB
  • 7.5 kW, 3ph.
  • 380 V, 0 ... 500Hz
  • 16.1 A

i510-C0.55/400-3

FI ESV112N01SMC 120/240V 1.1kW 1ph N4

Frequency inverter drives SMV 1.1 kW, 120/240 V, 6 A

FI ESV112N01SXE 120/240V 1.1kW 1ph N4
FI ESV112N02SFC 240V 1.1kW 1ph N4
FI ESV112N04TFC 480V 1.1kW 3ph N4
FI ESV112N04TFE 480V 1.1kW 3ph N4
FI ESV112N04TMC 480V 1.1kW 3ph N4

Frequency inverter drives SMV 50/60 Hz, 0.25 kW… 45 kW

FI ESV112N04TXC 480V 1.1kW 3ph N4
FI ESV112N04TXE 480V 1.1kW 3ph N4
FI ESV113N02TMD 240V 11kW 3ph N4

SMV series inverters 3 phases 380V, 11 kW, 24 A, 400 V

FI ESV152N02SFC 240V 1.5kW 1ph N4
FI ESV152N02YMC 240V 1.5kW 1/3ph N4
FI ESV152N02YXC 240V 1.5kW 1/3ph N4
FI ESV152N02YXE 240V 1.5kW 1/3ph N4
FI ESV152N04TFC 480V 1.5kW 3ph N4
FI ESV152N04TFE 480V 1.5kW 3ph N4
FI ESV152N04TLC 480V 1.5kW 3ph N4

Compact design Lenze SMV frequency inverters are easy to program, use vector motor control devices. The SMV (SMVector) drive is an excellent solution for multitasking AC motor control functions. They are characterized by simplicity of settings and small dimensions.

Lenze SMVector inverters have excellent performance over the entire motor control power range. Unlike many three-phase drives, SMVector continues to operate when the input voltage increases to 528V and when the load torque on the motor shaft changes up to 195%. The use of 16 sets with individually set frequency and other parameters provides a flexible sequence for performing the necessary operations.

Programming input and output control signals allows you to rotate the motor both at a constant (preset) and with programmable speed, provides the possibility of DC braking, as well as the possibility of using it in a constant pressure maintenance system without external regulators.

The integrated dynamic brake only requires an external resistor to be connected to quickly stop or slow down. Lenze SMV AC drives have the added benefit of an integrated soft start where the starting current is less than the motor rated current, this can be used in systems that have heavy starting and variable load. The engine kicks in at 165% torque load, accelerating from 0 to 100% in 0.33 seconds.

Currently, Lenze SMV are frequency converters with the best value for money.

Technical features of lenze SMVector:

  • Torque vector control;
  • Motor speed vector control;
  • Advanced frequency control;
  • Fast start;
  • Built-in PID controller;
  • High starting torque and reaching the rated speed of 50 Hz in just 8 seconds;
  • Speed recovery at 100% dynamic load in 0.15 seconds;
  • The control algorithm of the frequency converter SMVector, it allows you to increase the performance of the motor to the maximum;
  • Clear user set of commands;
  • Electronic software EPM module: easy and fast tuning of the frequency converter using EPM.

 Overload:

  • 150% for 60 seconds;
  • 200% for 15 sec. (up to 7.5 kW.);
  • 180% for 15 sec. (from 11 to 45 kW.).

 Functions:

  • Acceleration, braking, reversing;
  • 8 preset speeds;
  • Speed setting 4-20mA (0-10V);
  • DC braking;
  • Fault History (Last 8);
  • Relay or transistor output(s) depending on model;
  • 3 or more programmable inputs;
  • Isolated control terminals.

 SMVector application:

  • Food industry machines;
  • Packing machines;
  • Conveyor systems;
  • Transportation of materials and parts;
  • Ventilation and air conditioning systems;
  • Pumps;
  • Metal cutting machines;
  • Handling equipment;
  • Winders, crushers, etc.

With built-in communication modules, Lenze SMV frequency inverters can be easily integrated into any of the most common industrial networks. To be used in the automation of single drives or process equipment, the SMVector is equipped with the following communication modules:

  • Modbus/RS485
  • DeviceNet
  • CANopen
  • Profibus
  • ethernet
  • Standard I/O

Easy 4-wire connection (up to 30 meters from drive) with SMVector converter allows remote programming and control of the frequency converter (Start, stop, reverse, speed reference).

The remote control is configured using parameter P100 and duplicates the functionality of the drive's local keypad.

Dynamic braking modules include braking resistors and control circuitry. They make it easy to implement the modes of dynamic braking and quick stop of the electric motor.
