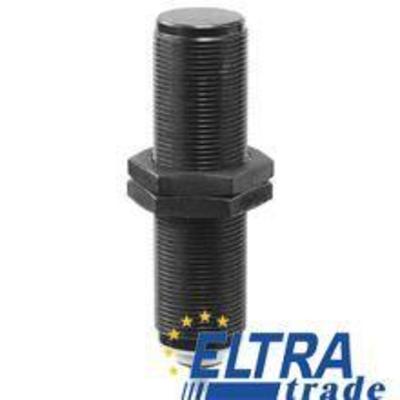

Baumer CFAK 18P1100

Capacitive proximity sensors
Baumer CFAK 18P1100
142.34
One click request
voltage supply range +Vs 10 ... 30 VDC
output current < 200 mA
switching frequency < 50 Hz
protection class IP 67/65 (sensing face/sensor)
nominal sensing distance Sn 5 mm
operating temperature -25 ... +75 °C
liquids in direct contact yes
fill level detection through container yes
housing length 63,5 mm
output circuit PNP make function (NO)
reverse polarity protection yes
sensitivity adjustment no
connection types cable, 2 m
voltage drop Vd < 1,5 VDC
GND electrode no
mounting type non-flush
temperature drift ± 15 % (0 ... +70 °C)
current consumption max. (no load) 20 mA
manufacter SKUCFAK 18P1100
object detection / bulk goods yes
CFAK 18P1100 dimension 18 mm
type cylindrical threaded
housing material PBT
short circuit protection yes
detection of non-conductive media yes
output indicator LED yellow
