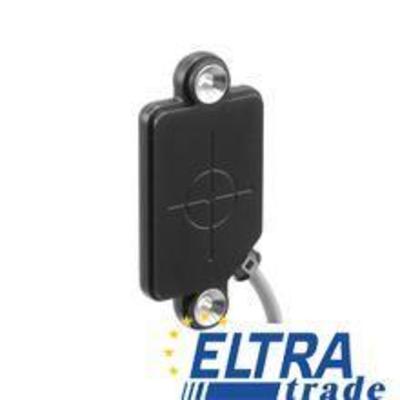

Baumer CFDK 25G3125/LN5

Capacitive proximity sensors
Baumer CFDK 25G3125/LN5
113.08
One click request
nominal sensing distance Sn 12 mm
temperature drift ± 20 %
voltage supply range +Vs 10 ... 30 VDC
protection class IP 65
connection types cable PVC 3 x 0,14, 2 m
manufacter SKUCFDK 25G3125/LN5
mounting type flush
housing length 52,4 mm
output function active low
housing material PA 12
detection of non-conductive media yes
operating temperature -25 ... +75 °C
liquids in direct contact no
object detection / bulk goods yes
fill level detection through container no
type rectangular
current consumption max. (no load) 15 mA
CFDK 25G3125/LN5 dimension 25 mm
short circuit protection yes
GND electrode no
reverse polarity protection yes
switching frequency < 35 Hz
output indicator LED red
output circuit push-pull
voltage drop Vd < 3 VDC
depth 6 mm
sensitivity adjustment no
output current < 100 mA
