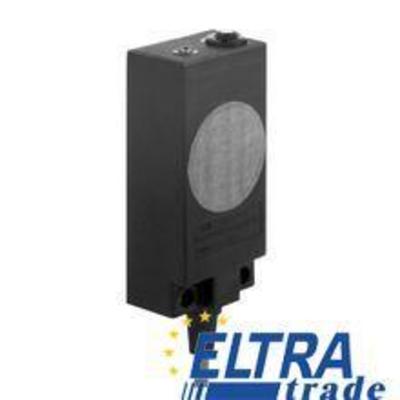

Baumer CFDK 30N3600

Capacitive proximity sensors
Baumer CFDK 30N3600
179.41
One click request
sensitivity adjustment potentiometer, 15 turn
GND electrode yes
type rectangular
liquids in direct contact no
short circuit protection yes
output current < 200 mA
detection of non-conductive media yes
output indicator LED yellow
current consumption max. (no load) 20 mA
mounting type flush
housing length 65 mm
housing material PBT
reverse polarity protection yes
nominal sensing distance Sn 15 mm
fill level detection through container yes
voltage drop Vd < 1,5 VDC
operating temperature -25 ... +75 °C
object detection / bulk goods yes
nominal sensing distance Sn adjustable 4 ... 15 mm
output circuit NPN break function (NC)
voltage supply range +Vs 10 ... 30 VDC
manufacter SKUCFDK 30N3600
temperature drift ± 15 % (+10 ... +70 °C)
CFDK 30N3600 dimension 30 mm
protection class IP 65
switching frequency < 50 Hz
connection types cable, 2 m
