Baumer OADR 20I6485/S14F Distance sensors

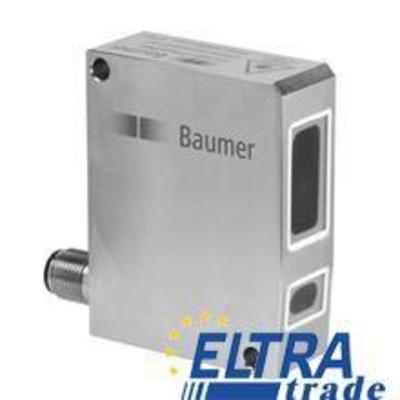

Baumer OADR 20I6485/S14F
Item Number: OADR 20I6485/S14F
measuring distance Sd100 ... 600 mm
special typeWashdown design
adjustmentexternal
operating temperature0 ... +50 °C
2567.40
Quantity
-
+
Total price: 2567.40
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
response time / release time < 0,9 ms
short circuit protection yes
current consumption max. (no load) 100 mA
power on indication LED green
temperature drift < 0,03 % Sde/K
beam type point
width / diameter 20,3 mm
soiled lens indicator LED red
wave length 650 nm
depth 51 mm
load resistance (analog U) > 100 kOhm
front (optics) PMMA
ambient light immunity < 10 kLux
housing material stainless steel 1.4404 (V4A)
adjustment external
measuring distance Sd 100 ... 600 mm
height / length 65 mm
light source pulsed red laser diode
linearity error ± 0,05 ... ± 2 mm
protection class IP 69K & proTect+
type rectangular
reverse polarity protection yes, Vs to GND
special type Washdown design
alarm output PNP
connection types connector M12 8 pin
resolution 0,015 ... 0,67 mm
output circuit analog
beam diameter 2 mm
operating temperature 0 ... +50 °C
output current < 100 mA
manufacter SKUOADR 20I6485/S14F
output signal 4 ... 20 mA / 0 ... 10 VDC
Teach-in range min. > 10 mm
voltage supply range +Vs 12 ... 28 VDC
load resistance (analog I) < (+Vs - 6 V) / 0,02 A
laser class 2
