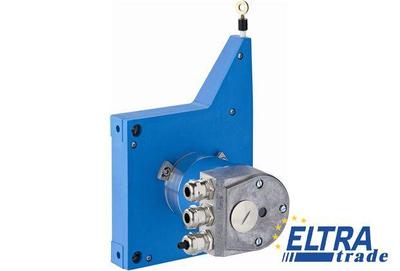

Sick BCG13-D1HM0521 Wire Draw (Rope) Encoders

Sick BCG13-D1HM0521
Item Number: BCG13-D1HM0521
  • Measuring lengths of 1.25 m, 3 m, 5 m, and 10 m.
  • Very small dimension (55 ... 190 mm)
  • Modular system: encoder type, measuring length, and interface can be selected
941.91
Quantity
-
+
Total price: 941.91
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1061035
Number of steps per revolution:8,192
Mounted encoder:ATM60 DeviceNet
Power consumption:2 W
Linearity:≤ ± 2 mm
MTTFd: mean time to dangerous failure:150 a
Hysteresis:≤ 0.4 mm
Measuring range:0 m ... 5 m
Life of wire draw mechanism:1 million cycles
Operating speed:4 m/s
Spring return force:Ca. 4.5 N ... ca. 7 N
Supply voltage:10 V ... 32 V
Working temperature range (mechanics):-30 °C ... +70 °C
Enclosure rating mechanic:IP 50
Mass (including encoder):1.39 kg
Repeatability:≤ 0.2 mm
Encoder:Absolute encoders
Bus termination:Via DIP switches
Housing material, wire draw mechanism:Plastic, Noryl
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Initialization time:Ca. 12 s
Encoder profile:Generic Profile
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
SET (electronic adjustment):Via PRESET push button or protocol
Actual length of cable extension:5.2 m
Protocol:DeviceNet Specification Release 2.0
Electrical interface:DeviceNet
Connection type:Bus adaptor with cable screw fixings or connector
Resolution (wire draw + encoder):0.05 mm
Relative humidity / Condensation:98 % (condensation of the optical scanning not permitted)
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Length of wire pulled out per revolution:385 mm
Working temperature range (encoder):-20 °C ... +70 °C
Mounted mechanic:MRA-G130-105D3
Mass (mechanics):800 g
Part number encoder:1030018
Resistance to shocks:100 g, 6 ms (according to EN 60068-2-27)
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Wire acceleration:4 m/s²
Part number mechanic:5322779
Mass (measuring wire):1.2 g/m
Address setting:0 ... 63, DIP-switches or protocol
Enclosure rating encoder:IP 67
Measuring wire diameter:0.55 mm
