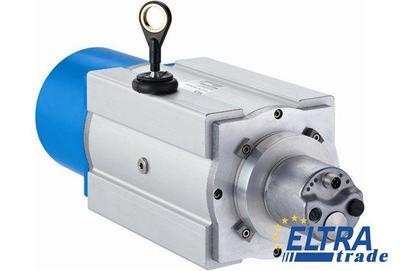

Sick BTF13-E1BM3099 Wire Draw (Rope) Encoders

Sick BTF13-E1BM3099
Item Number: BTF13-E1BM3099
  • Absolute wire draw encoders
  • Modular measuring system with a wide selection of interfaces/measuring lengths
  • Measuring lengths: 2 m ... 50 m
1965.93
Quantity
-
+
Total price: 1965.93
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1061006
Mass (measuring wire):2.6 g/m
Actual length of cable extension:30.2 m
Part number mechanic:6028629
Protocol:EtherCAT, CoE (CiA DS-301)
Resistance to shocks:100 g, 6 ms (according to EN 60068-2-27)
Repeatability:≤ 2 mm
Mounted mechanic:MRA-F130-130D1
Part number encoder:1059061
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Resolution (wire draw + encoder):0.001 mm
Working temperature range (encoder):-30 °C ... +70 °C
MTTFd: mean time to dangerous failure:80 a
Supply voltage:10 V ... 30 V
Length of wire pulled out per revolution:332.4 mm
Operating speed:4 m/s
Mass (including encoder):6.4 kg
Power consumption:3 W
Number of steps per revolution:262,144
Electrical interface:EtherCAT®
Enclosure rating encoder:IP 67
Encoder profile:CiA DS-406
Spring return force:10 N ... 20 N
Hysteresis:≤ 5 mm
Linearity:≤ ± 2 mm
Measuring range:0 m ... 30 m
Connection type:Connector 3 x M12, 4-pin, axial
Mass (mechanics):6.2 kg
Wire acceleration:15 m/s²
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Encoder:Absolute encoders
Life of wire draw mechanism:1 million cycles
Initialization time:Ca. 12 s
Housing material, wire draw mechanism:Aluminum (anodised), plastic
Relative humidity / Condensation:90 % (condensation of the optical scanning not permitted)
Working temperature range (mechanics):-30 °C ... +70 °C
Mounted encoder:AFM60 EtherCAT
Measuring wire diameter:0.81 mm
Resistance to vibration:30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Enclosure rating mechanic:IP 64
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
SET (electronic adjustment):Via PRESET push button or protocol
