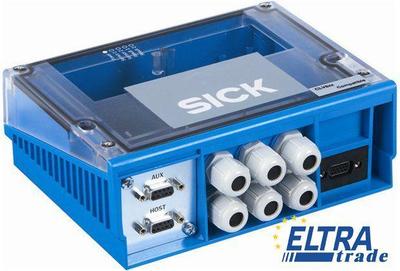

Sick CDM425-00034094
Item Number: CDM425-00034094
  • PROFINET gateway to connect sensors with peripherals
  • Slot for optional cloning module CMC600
  • Simple voltage supply of scanner
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick CDM425-00034094 is outdated.

Specification:

Part Number1048488
Enclosure rating:IP 65 (DIN 40 050)
DeviceNet:-
PROFIBUS DP:-
Configuration software:SOPAS ET
Ethernet:-
Brief description:Modular connection module for one sensor, additional M12 socket for PROFINET on face plate
Supports cloning module (CMC):No
Switching inputs:Depending on sensor connected
Serial (RS-232, RS-422/485):+
Optical indicators:4 LED (Status and error display)
Supports display module (CMD):No
Scanner connection:15-pin D-Sub HD socket
Supports fieldbus gateway (CMF):No
Housing color:Blue (RAL 5012)
Power consumption:Power consumption of the gateway + 3.5 W and of the sensor + 1 W
Switching outputs:Depending on sensor connected
Supported products:CLV42x, CLV43x, CLV44x, CLV45x, CLV62x, CLV63x, CLV64x, CLV65x, ICR84x-2, ICR85x-2, RFH620
Protection class:III (VDE 0106)
CAN bus:+
Life cycle phase:Phased out
Permissible relative humidity:± 90 %, non-condensing
Supports power supply module (CMP):No
Storage temperature:-35 °C ... +70 °C
Ambient operating temperature:-35 °C ... +40 °C
Service plug:9-pin D-Sub plug (internal)
Weight:1,100 g
Remark (CAN bus):Depending on sensor connected
Remark (Serial (RS-232, RS-422/485)):Depending on sensor connected
Dimensions:192 mm x 167 mm x 70 mm
Housing:Polycarbonat
