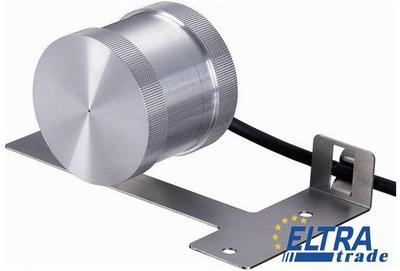

Sick DKV60-E2P00200 DKV60 Incremental encoder

Sick DKV60-E2P00200
Item Number: DKV60-E2P00200
  • Complete, preassembled measuring system
  • Measuring wheel with knurl or O-ring for adaptation to the measuring surface
  • Mounting bracket made from anti-corrosive spring steel
202.92
Quantity
-
+
Total price: 202.92
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1037803
Mass:0.42 kg
Output current:30
Smallest measuring step:0.25 mm
Bearing lifetime:2 x 10^9 revolutions
Resistance to shocks:50 g, 7 ms (EN 60068-2-27)
Supply voltage:10 V ... 30 V
Working temperature range:-10 °C ... +60 °C
Initialization time:40 s
Storage temperature range:-40 °C ... +70 °C, without package
Electrical interface:10 V ... 30 V, HTL/Push pull, Cable, M12, 8-pin, 1.5 m
Pulses per revolution:200
Air humidity:90 %
Error limits 'O' ring surface:± 4 mm
Maximum operating speed:1,500 U/min
Connection type:Cable, M12, 8-pin, 1.5 m
Reference signal, position:90 °, electronically, gated with A and B
Mechanical interface:Measuring drum, O ring surface
Reference signal, number:1
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)
Enclosure rating:IP 65
EMC:EN 61000-6-2, EN 61000-6-3
MTTFd: mean time to dangerous failure:600 a (EN ISO 13849-1)
Resolution:1 mm
Protection class standard:IEC 60529
