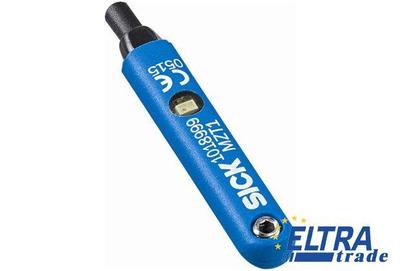

Sick MZT1-03VPS-KQD Magnetic Cylinder Sensors

Item Number: MZT1-03VPS-KQD
  • Compact housing design
  • Complete range with PNP / NPN, PUR and PVC cable , M8 and M12 connector
  • LED function indicator
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick MZT1-03VPS-KQD is outdated.


Part Number1029649
Output indicator:+
Short-circuit protection:+
Electrical wiring:DC 3-wire
Power-up pulse protection:+
Overrun distance typ.:9 mm
Repeatability:≤ 0.1 mT
Cable material:PUR
Switching output:PNP
Switching frequency typ.:5,000 Hz
Output function:NO
Housing material:Plastic
Magnetic field sensitivity, typ.:≤ 2.8 mT
Hysteresis typ.:≤ 0.5 mT
Cylinder types with adapter:Profile cylinder
Roundbody cylinder
SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Tie rod cylinder
Cylinders with dovetail slots
Supply voltage:10 V DC ... 30 V DC
EMC:According to EN 60947-5-2
Protection class:III
Housing length:30.5 mm
Conductor cross-section:0.14 mm²
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Thread size:M12
Enclosure rating:IP 67
Reverse polarity protection:+
Connection type:Cable with connector M12, 3-pin, 0.6 m
Power consumption:≤ 10 mA
Ambient operating temperature:-25 °C ... +75 °C
Output current Ia:≤ 100 mA
Cylinder type:T-slot
Voltage drop:≤ 2 V
