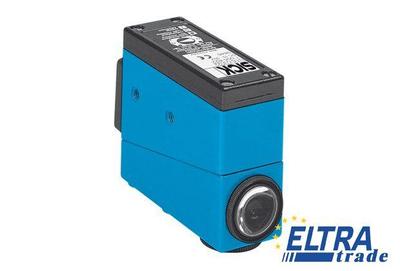

Sick NT6-03025 Contrast sensors

Sick NT6-03025
Item Number: NT6-03025
  • RGB, white LEDs and red lasers
  • Bar graph display visually indicates contrast performance (KT5, KT10)
  • High switching frequency
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1007167
Light emission:Long and short side of housing, exchangeable
Sensing distance:9 mm
Light spot direction :Vertical
Housing material:Die-cast zinc
Output current Imax.:200 mA
Light spot size:1.5 mm x 4 mm (red), 1.5 mm x 5 mm (green)
Ripple:≤ 5 Vpp
Sensing distance tolerance:± 2 mm
Switching output:B: HIGH = Uv - < 2 V / LOW = < 2 V
Shock load:According to IEC 60068
Supply voltage Vs:DC 10 V ... 30 V
Analog output QA:0.15 V ... 6 V
Weight:Approx. 540 g (with cable)
Light source :LED red, green
Dimensions (L x W x H):64 mm x 80 mm x 30.4 mm
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Power consumption :< 80 mA
Adjustment:Manual adjustment, potentiometer
Connection type:5 m cable , 4 x 0.34 mm, shielded, PVC, diameter 6 mm
Enclosure rating:IP 67
Response time :> 50 µs
Ambient temperature:Operation: 0 ... +50 °C, Storage: -25 ... +75 °C
Switching frequency :10 kHz
