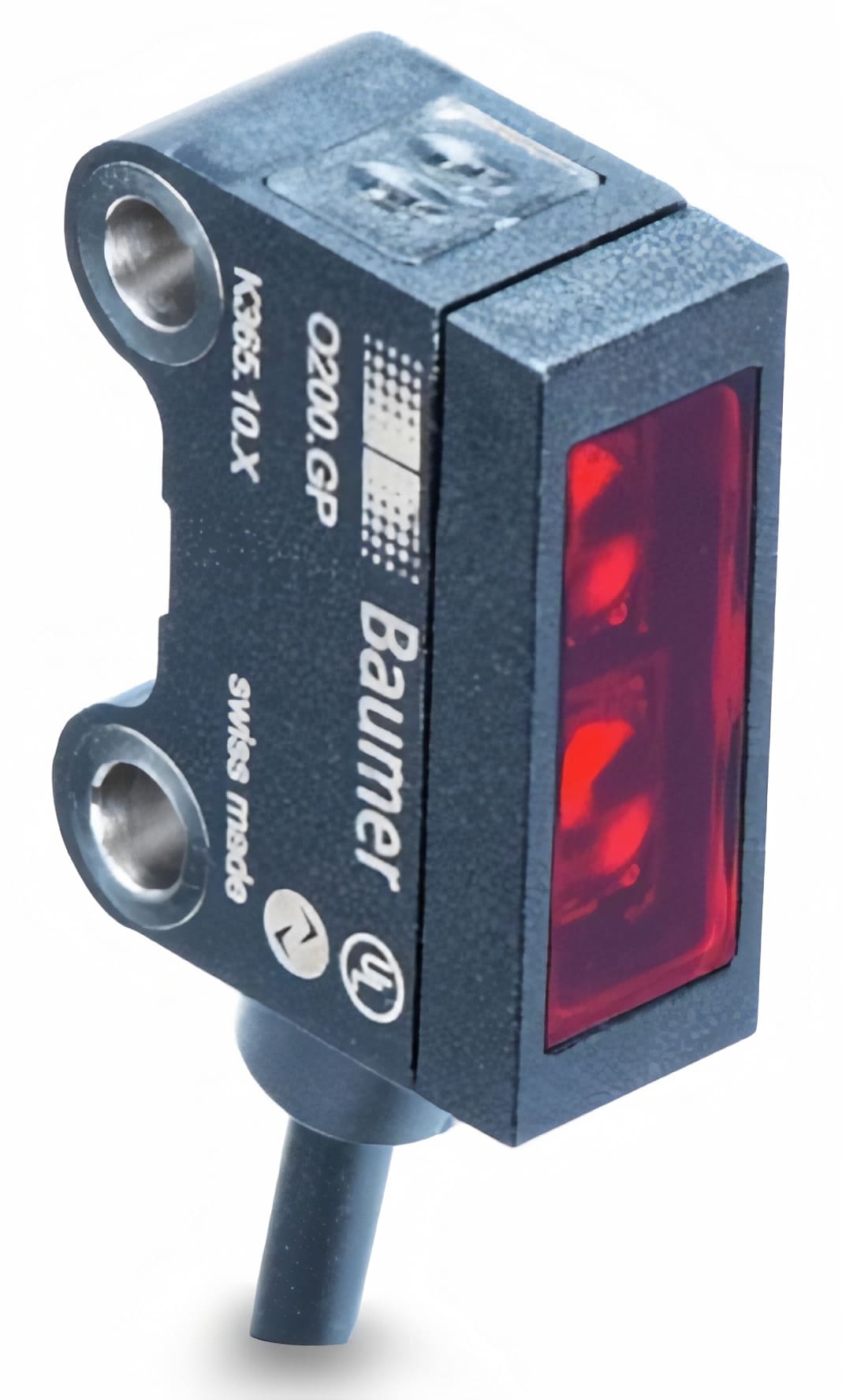

Baumer Photoelectric Sensors
art. 10145962
Reflectors Reflector rectangular 43 x 20.3 mm
| actual range Sb (FSE 200C1002) | 90 mm |
| sensing distance Tw (FUE 200C1003) | 25 mm |
| light source | pulsed red LED |
| output circuit | analog 1 ... 5 VDC |
| operating temperature | -20 ... +60 °C |
art. 10152090
| type | intensity difference |
| light source | pulsed red LED |
| sensing distance Tw | 20 ... 150 mm |
| operating temperature | -20 ... +50 °C |
art. 10151057
| type | intensity difference |
| light source | pulsed red LED |
| sensing distance Tw | 20 ... 150 mm |
| operating temperature | -20 ... +50 °C |
art. 11001229
| type | intensity difference |
| light source | pulsed red LED |
| sensing distance Tw | 5 ... 600 mm |
| operating temperature | -25 ... +65 °C |
art. 10218479
| type | intensity difference |
| light source | pulsed infrared diode |
| sensing distance Tw | < 40 mm |
| operating temperature | -25 ... +65 °C |
art. 10238047
| type | intensity difference |
| light source | pulsed infrared diode |
| sensing distance Tw | < 80 mm |
| operating temperature | -25 ... +65 °C |
art. 10238426
| type | intensity difference |
| light source | pulsed infrared diode |
| sensing distance Tw | 0 ... 400 mm |
| operating temperature | -25 ... +65 °C |
- Exceptional reliability even in the dark black, shiny, transparent or uneven surfaces
- Excellent accuracy and reproducibility
- Light barriers to increase the operating range up to 6 m
- Diffuse sensor with intensity difference up to 200 mm
art. 11208513
- Teach-in and IO-Link
- -25 … 50 °C
- IP 67
- Exceptional reliability even in the dark black, shiny, transparent or uneven surfaces
- Excellent accuracy and reproducibility
art. 11176842
- receiver
- through beam sensor
- 40 m
- push-pull
- qTeach / remote
- cable 4 pin, 2 m
- -25 ... 60 °C
- IP 67
art. 11181069
- receiver
- through beam sensor
- 40 m
- NPN complementary
- qTeach
- cable 4 pin, 2 m
- -25 ... 60 °C
- IP 67
art. 11181082
- receiver
- through beam sensor
- 40 m
- PNP complementary
- qTeach
- connector M8 4 pin
- -25 ... 60 °C
- IP 67
art. 11120101
| type | background suppression |
| light source | pulsed PinPoint LED |
| sensing distance Tw | 30 ... 200 mm |
| operating temperature | -25 ... +60 °C |
art. 11110415
| type | background suppression |
| light source | pulsed PinPoint LED |
| sensing distance Tw | 30 ... 200 mm |
| operating temperature | -25 ... +60 °C |
art. 11143644
| type | background suppression |
| light source | pulsed PinPoint LED |
| sensing distance Tw | 30 ... 200 mm |
| operating temperature | -25 ... +60 °C |
art. 11125058
| type | background suppression |
| light source | pulsed PinPoint LED |
| sensing distance Tw | 30 ... 200 mm |
| operating temperature | -25 ... +60 °C |
art. 11120104
| type | background suppression |
| light source | pulsed PinPoint LED |
| sensing distance Tw | 30 ... 200 mm |
| output circuit | PNP complementary |
| operating temperature | -25 ... +60 °C |
art. 11110441
| type | background suppression |
| light source | pulsed PinPoint LED |
| sensing distance Tw | 30 ... 200 mm |
| output circuit | PNP complementary |
| operating temperature | -25 ... +60 °C |
art. 11120106
| type | background suppression |
| light source | pulsed red LED |
| sensing distance Tw | 30 ... 300 mm |
| operating temperature | -25 ... +60 °C |
art. 11110414
| type | background suppression |
| light source | pulsed red LED |
| sensing distance Tw | 30 ... 300 mm |
| operating temperature | -25 ... +60 °C |
art. 11135881
| type | background suppression |
| light source | pulsed red LED |
| sensing distance Tw | 30 ... 300 mm |
| output circuit | PNP complementary |
| operating temperature | -25 ... +60 °C |
art. 11110449
| type | retro-reflective sensor |
| light source | pulsed PinPoint LED |
| actual range Sb | 5 m |
| operating temperature | -25 ... +60 °C |
art. 11120129
| type | retro-reflective sensor |
| light source | pulsed PinPoint LED |
| actual range Sb | 5 m |
| operating temperature | -25 ... +60 °C |
art. 11120112
| type | retro-reflective sensor |
| light source | pulsed PinPoint LED |
| actual range Sb | 5 m |
| operating temperature | -25 ... +60 °C |
art. 11110444
| type | retro-reflective sensor |
| light source | pulsed red LED |
| actual range Sb | 4 m |
| operating temperature | -25 ... +60 °C |
art. 11110443
| type | retro-reflective sensor |
| light source | pulsed red LED |
| actual range Sb | 4 m |
| operating temperature | -25 ... +60 °C |
art. 11110450
| type | light barrier |
| version | standard object detection |
| light source | pulsed PinPoint LED |
| operating temperature | -25 ... +60 °C |
