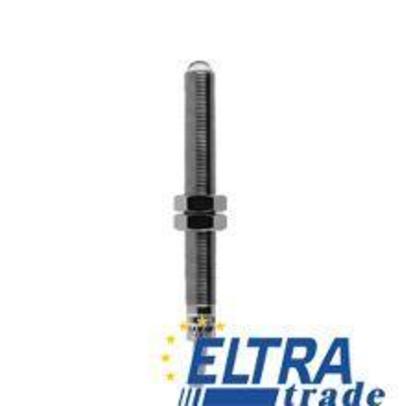

Baumer FEAM 08P1002 Through beam sensors
Item Number: FEAM 08P1002
| type | through beam sensor |
| emitter / receiver | receiver |
| actual range Sb | 2,5 m |
| operating temperature | -25 ... +65 °C |
- Overview
- Datasheet
- Alternative numbers
- Comments
| housing material | brass nickel plated |
| protection class | IP 65 |
| width / diameter | 8 mm |
| sensitivity adjustment | no |
| light indicator | LED red |
| voltage supply range +Vs | 10 ... 30 VDC |
| reverse polarity protection | yes |
| short circuit protection | yes |
| connection types | cable 3 pin, 2 m |
| current consumption typ. | 24 mA |
| front (optics) | PC |
| output current | < 100 mA |
| alignment / soiled lens indicator | flashing light indicator |
| output function | light operate |
| actual range Sb | 2,5 m |
| height / length | 59 mm |
| nominal range Sn | 3 m |
| emitter / receiver | receiver |
| response time / release time | < 2,5 ms |
| current consumption max. (no load) | 24 mA |
| voltage drop Vd | < 2 VDC |
| operating temperature | -25 ... +65 °C |
| output circuit | PNP |
| type | cylindrical threaded |
| manufacter SKU | FEAM 08P1002 |
| type | through beam sensor |
