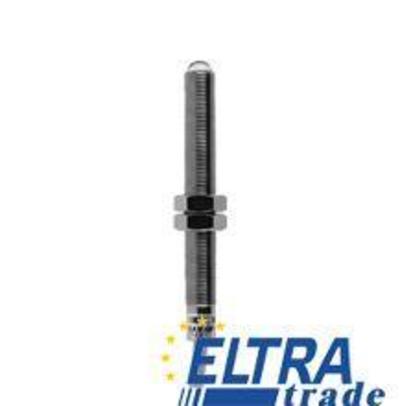

Baumer FEAM 08P3002 Through beam sensors

Baumer FEAM 08P3002
Item Number: FEAM 08P3002
type through beam sensor
emitter / receiverreceiver
actual range Sb2,5 m
operating temperature-25 ... +65 °C
147.51
Quantity
-
+
Total price: 147.51
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
connection types cable 3 pin, 2 m
actual range Sb 2,5 m
light indicator LED red
protection class IP 65
height / length 59 mm
reverse polarity protection yes
output current < 100 mA
short circuit protection yes
output circuit PNP
manufacter SKUFEAM 08P3002
emitter / receiver receiver
voltage supply range +Vs 10 ... 30 VDC
current consumption max. (no load) 24 mA
type through beam sensor
housing material brass nickel plated
type cylindrical threaded
alignment / soiled lens indicator flashing light indicator
current consumption typ. 24 mA
operating temperature -25 ... +65 °C
nominal range Sn 3 m
front (optics) PC
width / diameter 8 mm
voltage drop Vd < 2 VDC
response time / release time < 2,5 ms
output function dark operate
sensitivity adjustment no
