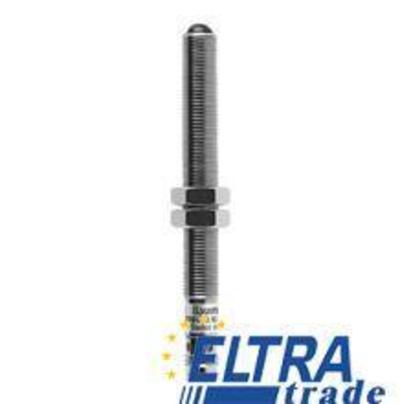

Baumer FEAM 08P3002/S35L Through beam sensors

Baumer FEAM 08P3002/S35L
Item Number: FEAM 08P3002/S35L
type through beam sensor
emitter / receiverreceiver
actual range Sb2,5 m
operating temperature-25 ... +65 °C
137.61
Quantity
-
+
Total price: 137.61
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
front (optics) PC
reverse polarity protection yes
actual range Sb 2,5 m
voltage drop Vd < 2 VDC
voltage supply range +Vs 10 ... 30 VDC
type through beam sensor
emitter / receiver receiver
type cylindrical threaded
current consumption max. (no load) 24 mA
nominal range Sn 3 m
output function dark operate
width / diameter 8 mm
response time / release time < 2,5 ms
manufacter SKUFEAM 08P3002/S35L
protection class IP 65
operating temperature -25 ... +65 °C
short circuit protection yes
alignment / soiled lens indicator flashing light indicator
sensitivity adjustment no
connection types connector M8, 3 pin
height / length 75,5 mm
output circuit PNP
current consumption typ. 24 mA
output current < 100 mA
housing material brass nickel plated
light indicator LED red
