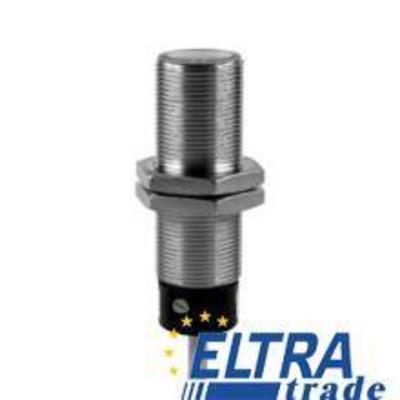

Baumer FEAM 18N3150 Through beam sensors

Baumer FEAM 18N3150
Item Number: FEAM 18N3150
type through beam sensor
emitter / receiverreceiver
actual range Sb16 m
operating temperature-25 ... +55 °C
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
actual range Sb 16 m
output circuit NPN
short circuit protection yes
height / length 57 mm
housing material brass nickel plated / PC
voltage supply range +Vs 10 ... 30 VDC
operating temperature -25 ... +55 °C
type through beam sensor
current consumption max. (no load) 20 mA
type cylindrical threaded
sensitivity adjustment potentiometer, 270°
light indicator LED yellow
output current < 200 mA
nominal range Sn 20 m
current consumption typ. 20 mA
output function dark operate
front (optics) PC
connection types cable 3 pin, 2 m
alignment / soiled lens indicator flashing light indicator
response time / release time < 1 ms
voltage drop Vd < 1,8 VDC
width / diameter 18 mm
protection class IP 67
manufacter SKUFEAM 18N3150
emitter / receiver receiver
reverse polarity protection yes
