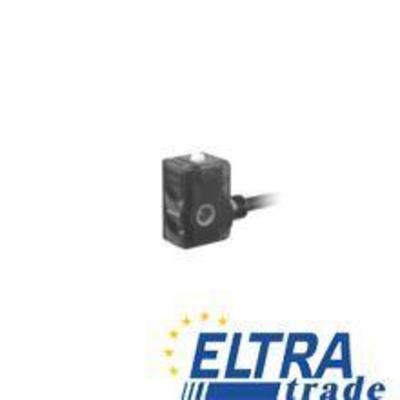

Baumer FECK 07P6901

Through beam sensors
Baumer FECK 07P6901
119.57
One click request
output circuit PNP
current consumption max. (no load) 20 mA
output indicator LED yellow
manufacter SKUFECK 07P6901
operating temperature -20 ... +50 °C
actual range Sb 2 m
nominal range Sn 2,5 m
reverse polarity protection yes
emitter / receiver receiver
output function light / dark operate
light indicator LED green
current consumption typ. 20 mA
housing material plastic (PMMA, MABS, PA)
depth 10,8 mm
height / length 16,2 mm
width / diameter 8 mm
type through beam sensor
voltage drop Vd < 1,8 VDC
voltage supply range +Vs 10 ... 30 VDC
alignment / soiled lens indicator flashing light indicator
protection class IP 65
output current < 100 mA
sensitivity adjustment Teach-in
connection types cable rear side, 2 m
short circuit protection yes
response time / release time < 0,5 ms
type rectangular
front (optics) PMMA
