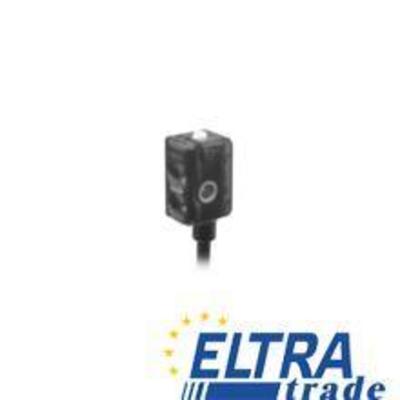

Baumer FEDK 07N6901/KS35A

Through beam sensors
Baumer FEDK 07N6901/KS35A
125.40
One click request
response time / release time < 0,5 ms
emitter / receiver receiver
height / length 16,2 mm
type through beam sensor
protection class IP 65
width / diameter 8 mm
actual range Sb 2 m
current consumption typ. 20 mA
output indicator LED yellow
type rectangular
output current < 100 mA
short circuit protection yes
depth 10,8 mm
current consumption max. (no load) 20 mA
sensitivity adjustment Teach-in
voltage drop Vd < 1,8 VDC
operating temperature -20 ... +50 °C
nominal range Sn 2,5 m
manufacter SKUFEDK 07N6901/KS35A
connection types flylead connector M8 4 pin, L=200 mm
reverse polarity protection yes
front (optics) PMMA
voltage supply range +Vs 10 ... 30 VDC
housing material plastic (PMMA, MABS, PA)
alignment / soiled lens indicator flashing light indicator
output circuit NPN
light indicator LED green
output function light / dark operate
