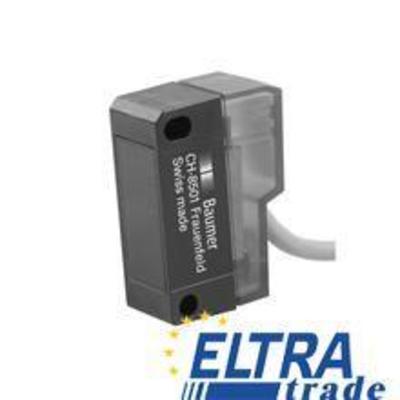

Baumer FEDK 14N5101

Through beam sensors
Baumer FEDK 14N5101
96.91
One click request
output function light / dark operate
reverse polarity protection yes
operating temperature -25 ... +65 °C
short circuit protection yes
sensitivity adjustment no
manufacter SKUFEDK 14N5101
output circuit NPN
nominal range Sn 15 m
height / length 43 mm
depth 31 mm
current consumption max. (no load) 20 mA
voltage supply range +Vs 10 ... 30 VDC
type rectangular
light indicator LED yellow
housing material plastic (ASA, MABS)
front (optics) PMMA
alignment / soiled lens indicator flashing light indicator
current consumption typ. 20 mA
voltage drop Vd < 1,8 VDC
actual range Sb 12 m
type through beam sensor
output current < 100 mA
response time / release time < 1,2 ms
width / diameter 14,8 mm
emitter / receiver receiver
connection types cable 4 pin, 2 m
protection class IP 67
