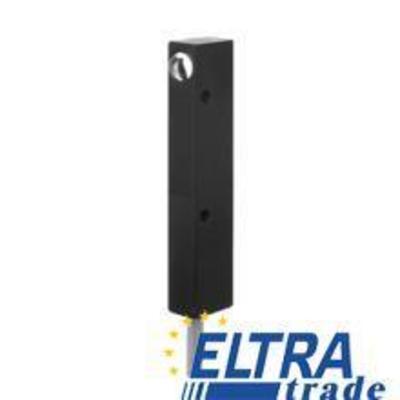

Baumer FEDM 08P3002 Through beam sensors

Baumer FEDM 08P3002
Item Number: FEDM 08P3002
type through beam sensor
emitter / receiverreceiver
actual range Sb2,5 m
operating temperature-25 ... +65 °C
154.77
Quantity
-
+
Total price: 154.77
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
type through beam sensor
actual range Sb 2,5 m
current consumption max. (no load) 24 mA
connection types cable 3 pin, 2 m
emitter / receiver receiver
light indicator LED red
width / diameter 8 mm
sensitivity adjustment no
protection class IP 65
operating temperature -25 ... +65 °C
output circuit PNP
type rectangular
housing material aluminum anodized
response time / release time < 2,5 ms
height / length 58 mm
nominal range Sn 3 m
voltage drop Vd < 2 VDC
depth 15 mm
manufacter SKUFEDM 08P3002
output current < 100 mA
short circuit protection yes
reverse polarity protection yes
voltage supply range +Vs 10 ... 30 VDC
front (optics) PC
output function dark operate
current consumption typ. 24 mA
alignment / soiled lens indicator flashing light indicator
