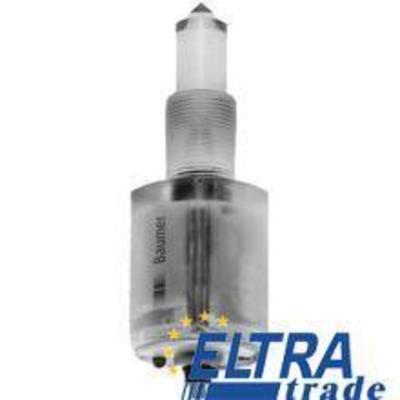

Baumer FFAK 17NTD1001/L Liquid level and leakage sensors

Baumer FFAK 17NTD1001/L
Item Number: FFAK 17NTD1001/L
type liquid level sensor
light sourcepulsed infrared diode
nominal pressure (probe tip)10 bar
operating temperature0 ... +65 °C
157.41
Quantity
-
+
Total price: 157.41
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
protection class IP 67
voltage supply range +Vs 10 ... 30 VDC
output indicator LED yellow
current consumption max. (no load) 15 mA
output circuit NPN
wave length 880 nm
type cylindrical
width / diameter 30 mm
reverse polarity protection yes, Vs to GND
output current < 200 mA
connection types cable 3 pin, 2 m
sensitivity adjustment no
height / length 81 mm
measurement type contact with medium
operating temperature 0 ... +65 °C
nominal pressure (probe tip) 10 bar
light source pulsed infrared diode
output function normally open (NO)
type liquid level sensor
housing material polysulphone
short circuit protection no
thread G 3/8"
voltage drop Vd < 2 VDC
material (sensing device) polysulphone
manufacter SKUFFAK 17NTD1001/L
