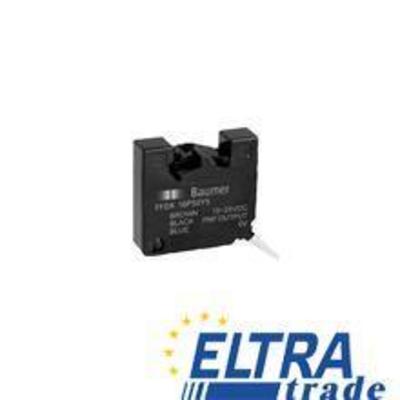

Baumer FFDK 16P50Y5 Liquid level and leakage sensors

Baumer FFDK 16P50Y5
Item Number: FFDK 16P50Y5
type liquid level sensor
light sourcepulsed infrared diode
output indicatorLED red
operating temperature-10 ... +55 °C
169.51
Quantity
-
+
Total price: 169.51
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
protection class IP 50
connection types cable 3 pin, 2 m
output indicator LED red
sensitivity adjustment no
output function light / dark operate switchable
depth 26 mm
short circuit protection yes
width / diameter 16 mm
current consumption max. (no load) 25 mA
max. thickness of the pipe / tube 1 mm
operating temperature -10 ... +55 °C
output current < 100 mA
light source pulsed infrared diode
wave length 950 nm
manufacter SKUFFDK 16P50Y5
type rectangular
max. outer diameter of the pipe / tube 3 ... 7 mm
output circuit PNP
response time / release time < 2 ms
height / length 28 mm
voltage drop Vd < 1 VDC
voltage supply range +Vs 10 ... 30 VDC
reverse polarity protection yes
housing material PC
type liquid level sensor
