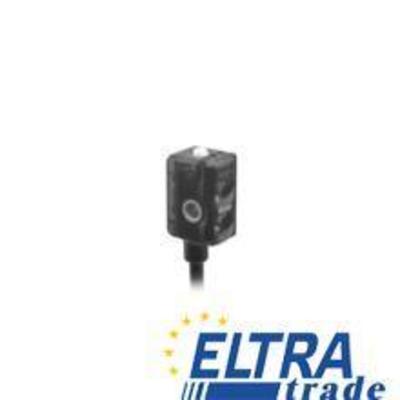

Baumer FHDK 07N6901 Diffuse sensors with background suppression

Baumer FHDK 07N6901
Item Number: FHDK 07N6901
type background suppression
light sourcepulsed red LED
sensing distance Tw10 ... 60 mm
operating temperature-20 ... +50 °C
115.06
Quantity
-
+
Total price: 115.06
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
type background suppression
reverse polarity protection yes
output circuit NPN
type rectangular
output function light / dark operate
voltage drop Vd < 1,8 VDC
current consumption max. (no load) 25 mA
output indicator LED yellow
height / length 16,2 mm
housing material plastic (PMMA, MABS, PA)
depth 10,8 mm
voltage supply range +Vs 10 ... 30 VDC
response time / release time < 0,5 ms
light indicator LED green
suppression of reciprocal influence yes
operating temperature -20 ... +50 °C
sensing range Tb (at Tw min.) 5 ... 10 mm
front (optics) PMMA
light source pulsed red LED
current consumption typ. 20 mA
protection class IP 65
short circuit protection yes
connection types cable bottom side, 2 m
sensing distance adjustment Teach-in
wave length 660 nm
sensing distance Tw 10 ... 60 mm
alignment / soiled lens indicator flashing light indicator
manufacter SKUFHDK 07N6901
sensing range Tb (at Tw max.) 2 ... 60 mm
output current < 100 mA
width / diameter 8 mm
