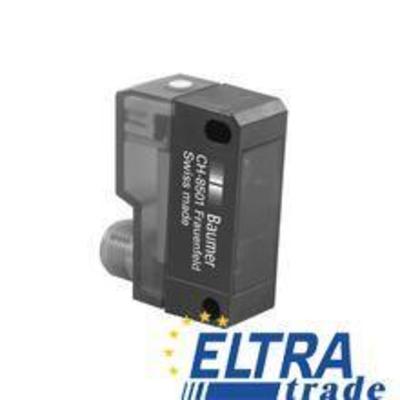

Baumer FHDK 14P5101/S14 Diffuse sensors with background suppression

Baumer FHDK 14P5101/S14
Item Number: FHDK 14P5101/S14
type background suppression
light sourcepulsed red LED
sensing distance Tw20 ... 350 mm
operating temperature-25 ... +65 °C
101.53
Quantity
-
+
Total price: 101.53
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
suppression of reciprocal influence yes
connection types connector M12 4 pin
light source pulsed red LED
output circuit PNP
sensing distance Tw 20 ... 350 mm
housing material plastic (ASA, MABS)
voltage supply range +Vs 10 ... 30 VDC
type background suppression
height / length 43 mm
output current < 100 mA
sensing range Tb (at Tw max.) 20 ... 350 mm
voltage drop Vd < 1,8 VDC
width / diameter 14,8 mm
short circuit protection yes
sensing range Tb (at Tw min.) 5 ... 20 mm
output function light / dark operate
protection class IP 67
wave length 660 nm
reverse polarity protection yes
alignment / soiled lens indicator flashing light indicator
manufacter SKUFHDK 14P5101/S14
sensing distance adjustment mechanical, 10 turn
light indicator LED yellow
type rectangular
response time / release time < 1 ms
current consumption max. (no load) 30 mA
current consumption typ. 25 mA
operating temperature -25 ... +65 °C
depth 31 mm
front (optics) PMMA
