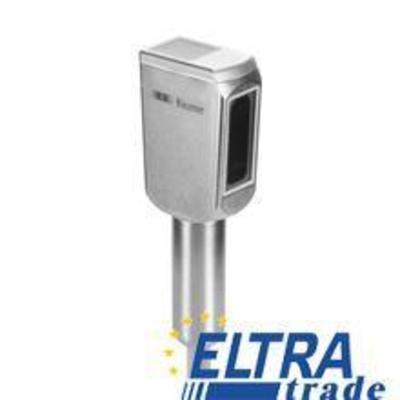

Baumer FNDH 14G6903/KS34A SmartReflect Light barriers

Baumer FNDH 14G6903/KS34A
Item Number: FNDH 14G6903/KS34A
type light barrier
special typehygienic design
versionFoil detection
operating temperature-30 ... +60 °C
372.90
Quantity
-
+
Total price: 372.90
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
power on indication LED green
width / diameter 19,6 mm
height / length 52,2 mm
reverse polarity protection yes
voltage drop Vd < 2 VDC
special type hygienic design
operating temperature -30 ... +60 °C
connection types flylead connector M12, L=300 mm
output circuit push-pull
wave length 660 nm
alignment / soiled lens indicator flashing light indicator
version Foil detection
output indicator LED red
depth 34,3 mm
output current < 100 mA
type light barrier
short circuit protection yes
front (optics) PMMA
current consumption max. (no load) 40 mA
protection class IP 68/69K & proTect+
background position Sde 200 ... 800 mm on V4A
type rectangular
manufacter SKUFNDH 14G6903/KS34A
current consumption typ. 35 mA
light source pulsed point source LED
response time / release time < 1,8 ms
voltage supply range +Vs 10 ... 30 VDC
storage temperature -30 ... +70 °C
sensing distance adjustment Teach-in
minimal signal attenuation 12 %
output function light / dark operate
housing material stainless steel 1.4404 (V4A)
