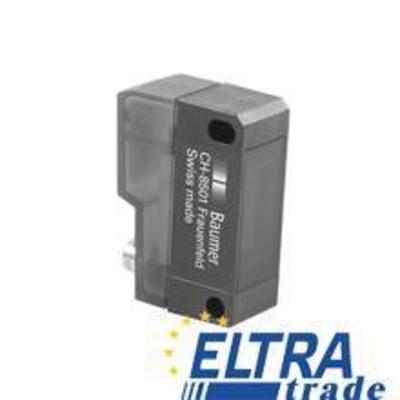

Baumer FNDK 14G6902/S14/IO SmartReflect Light barriers

Baumer FNDK 14G6902/S14/IO
Item Number: FNDK 14G6902/S14/IO
type light barrier
versionTray and bottle detection
light sourcepulsed red LED
operating temperature-30 ... +60 °C
250.69
Quantity
-
+
Total price: 250.69
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
short circuit protection yes
depth 31 mm
manufacter SKUFNDK 14G6902/S14/IO
output current < 100 mA
current consumption max. (no load) 35 mA
protection class IP 67
sensing distance adjustment Teach-in and IO-Link
background position Sde 200 ... 800 mm on V4A
output function light / dark operate
connection types connector M12 4 pin
power on indication LED green
housing material plastic (ASA, MABS)
light source pulsed red LED
height / length 43 mm
voltage drop Vd < 2 VDC
operating temperature -30 ... +60 °C
alignment / soiled lens indicator flashing light indicator
response time / release time < 1,8 ms
voltage supply range +Vs 10 ... 30 VDC
output circuit push-pull
wave length 660 nm
current consumption typ. 30 mA
reverse polarity protection yes, Vs to GND
type light barrier
output indicator LED red
front (optics) PMMA
type rectangular
minimal signal attenuation 30 %
width / diameter 14,8 mm
version Tray and bottle detection
