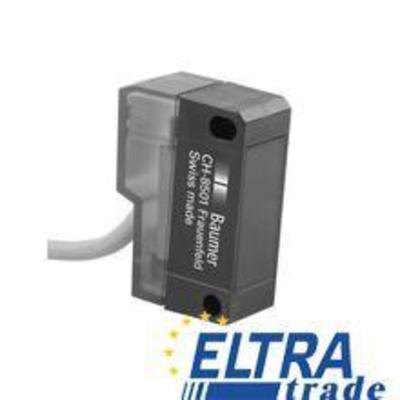

Baumer FNDK 14G6904/IO SmartReflect Light barriers

Baumer FNDK 14G6904/IO
Item Number: FNDK 14G6904/IO
type light barrier
versionstandard object detection
light sourcepulsed red LED
operating temperature-30 ... +60 °C
228.58
Quantity
-
+
Total price: 228.58
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
sensing distance adjustment Teach-in and IO-Link
output circuit push-pull
wave length 660 nm
operating temperature -30 ... +60 °C
voltage supply range +Vs 10 ... 30 VDC
housing material plastic (ASA, MABS)
reverse polarity protection yes
connection types cable 4 pin, 2 m
scanning range Sa 96% Sde
protection class IP 67
current consumption typ. 30 mA
manufacter SKUFNDK 14G6904/IO
height / length 43 mm
width / diameter 14,8 mm
alignment / soiled lens indicator flashing light indicator
background position Sde 50 ... 800 mm on V4A
type rectangular
short circuit protection yes
depth 31 mm
output function light / dark operate
output current < 100 mA
voltage drop Vd < 2 VDC
current consumption max. (no load) 35 mA
power on indication LED green
response time / release time < 1,8 ms
front (optics) PMMA
light source pulsed red LED
output indicator LED red
type light barrier
version standard object detection
