Baumer FPDK 20N5101/S35A Retro-reflective sensors

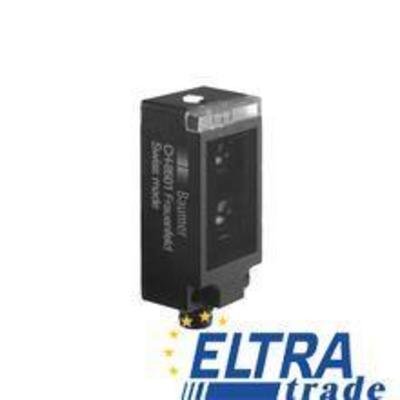

Baumer FPDK 20N5101/S35A
Item Number: FPDK 20N5101/S35A
type retro-reflective sensor
light sourcepulsed red LED
actual range Sb5,5 m
operating temperature-25 ... +65 °C
123.86
Quantity
-
+
Total price: 123.86
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
reverse polarity protection yes
voltage supply range +Vs 10 ... 30 VDC
height / length 42 mm
light source pulsed red LED
suppression of reciprocal influence yes
polarization filter yes
short circuit protection yes
connection types connector M8 4 pin
housing material plastic (PBT-ASA)
nominal range Sn 6,8 m
output current < 100 mA
sensitivity adjustment potentiometer, 270°
manufacter SKUFPDK 20N5101/S35A
width / diameter 20 mm
type retro-reflective sensor
light indicator LED yellow
depth 15 mm
output function light / dark operate
operating temperature -25 ... +65 °C
wave length 660 nm
front (optics) PMMA
protection class IP 67
current consumption typ. 22 mA
response time / release time < 0,5 ms
output circuit NPN
voltage drop Vd < 1,8 VDC
alignment / soiled lens indicator flashing light indicator
type rectangular
current consumption max. (no load) 25 mA
actual range Sb 5,5 m
