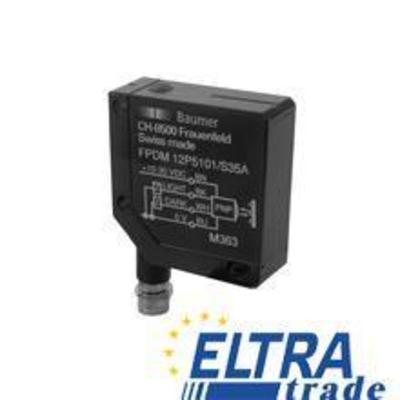

Baumer FPDM 12N3401/S35A Retro-reflective sensors

Baumer FPDM 12N3401/S35A
Item Number: FPDM 12N3401/S35A
type retro-reflective sensor
light sourcepulsed red LED
actual range Sb5 m
operating temperature-25 ... +65 °C
207.68
Quantity
-
+
Total price: 207.68
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
output circuit NPN
operating temperature -25 ... +65 °C
type retro-reflective sensor
short circuit protection yes
width / diameter 12,4 mm
voltage supply range +Vs 10 ... 30 VDC
reverse polarity protection yes
manufacter SKUFPDM 12N3401/S35A
front (optics) PMMA
sensitivity adjustment no
response time / release time < 1 ms
suppression of reciprocal influence yes
polarization filter yes
type rectangular
voltage drop Vd < 1,8 VDC
output current < 100 mA
wave length 660 nm
current consumption typ. 25 mA
light source pulsed red LED
nominal range Sn 5,2 m
actual range Sb 5 m
alignment / soiled lens indicator flashing light indicator
connection types connector M8 4 pin
current consumption max. (no load) 35 mA
depth 35 mm
protection class IP 67
light indicator LED yellow
housing material die-cast zinc
output function alarm output dark
height / length 35 mm
