Baumer FPDR 14N5101/S14 Retro-reflective sensors

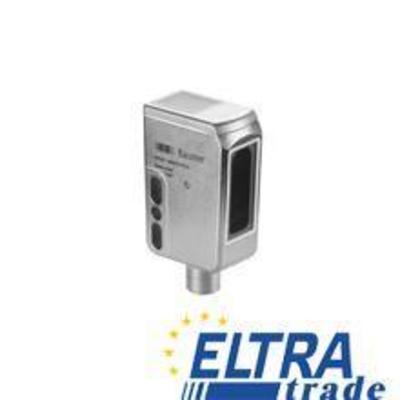

Baumer FPDR 14N5101/S14
Item Number: FPDR 14N5101/S14
type retro-reflective sensor
special typeWashdown design
light sourcepulsed red LED
operating temperature-30 ... +60 °C
153.01
Quantity
-
+
Total price: 153.01
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
wave length 660 nm
output function light / dark operate
voltage drop Vd < 1,8 VDC
alignment / soiled lens indicator flashing light indicator
short circuit protection yes
actual range Sb 3 m
manufacter SKUFPDR 14N5101/S14
type rectangular
polarization filter yes
voltage supply range +Vs 10 ... 30 VDC
sensitivity adjustment no
light indicator LED yellow
reverse polarity protection yes
width / diameter 19,6 mm
current consumption typ. 20 mA
operating temperature -30 ... +60 °C
storage temperature -30 ... +70 °C
type retro-reflective sensor
height / length 51 mm
special type Washdown design
output circuit NPN
suppression of reciprocal influence yes
nominal range Sn 3,5 m
housing material stainless steel 1.4404 (V4A)
output current < 100 mA
light source pulsed red LED
protection class IP 68/69K & proTect+
response time / release time < 1 ms
current consumption max. (no load) 25 mA
connection types connector M12
depth 34,3 mm
front (optics) PMMA
