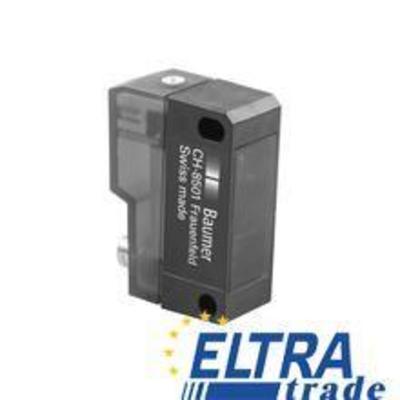

Baumer FRDK 14N6901/S35A Retro-reflective sensors

Baumer FRDK 14N6901/S35A
Item Number: FRDK 14N6901/S35A
type retro-reflective sensor
versionfor transparent objects
light sourcepulsed red LED
operating temperature-25 ... +65 °C
123.97
Quantity
-
+
Total price: 123.97
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
depth 31 mm
connection types connector M8 4 pin
wave length 660 nm
actual range Sb 7 m
manufacter SKUFRDK 14N6901/S35A
polarization filter no
current consumption max. (no load) 40 mA
height / length 43 mm
voltage supply range +Vs 10 ... 30 VDC
protection class IP 67
short circuit protection yes
voltage drop Vd < 2,2 VDC
housing material plastic (ASA, MABS)
output function light / dark operate switchable
front (optics) PMMA
reverse polarity protection yes
current consumption typ. 35 mA
output current < 100 mA
operating temperature -25 ... +65 °C
output circuit NPN
light source pulsed red LED
response time / release time < 0,1 ms
type retro-reflective sensor
light indicator LED yellow
sensitivity adjustment Teach-in
adaption time < 20 ms
nominal range Sn 8 m
width / diameter 14,8 mm
type rectangular
version for transparent objects
teach-in signal time > 500 µs
