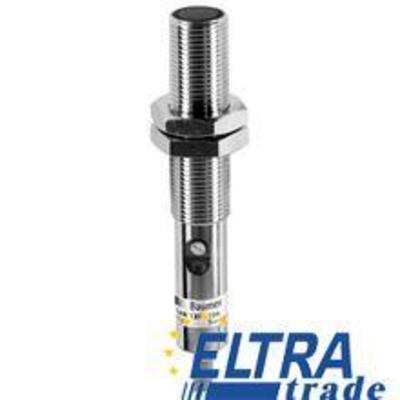

Baumer FZAM 12N3104 Diffuse sensors with intensity difference

Baumer FZAM 12N3104
Item Number: FZAM 12N3104
type intensity difference
light sourcepulsed infrared diode
sensing distance Tw30 ... 200 mm
operating temperature-25 ... +65 °C
165.11
Quantity
-
+
Total price: 165.11
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
alignment / soiled lens indicator flashing light indicator
protection class IP 65
current consumption typ. 24 mA
voltage supply range +Vs 10 ... 30 VDC
sensitivity adjustment potentiometer, 270°
connection types cable 3 pin, 2 m
output current < 200 mA
suppression of reciprocal influence yes
output circuit NPN
housing material brass nickel plated
light indicator LED yellow
reverse polarity protection yes
light source pulsed infrared diode
height / length 70 mm
type intensity difference
response time / release time < 1 ms
wave length 880 nm
type cylindrical threaded
operating temperature -25 ... +65 °C
short circuit protection yes
current consumption max. (no load) 42 mA
front (optics) PC
sensing distance Tw 30 ... 200 mm
voltage drop Vd < 1,8 VDC
width / diameter 12 mm
manufacter SKUFZAM 12N3104
output function dark operate
