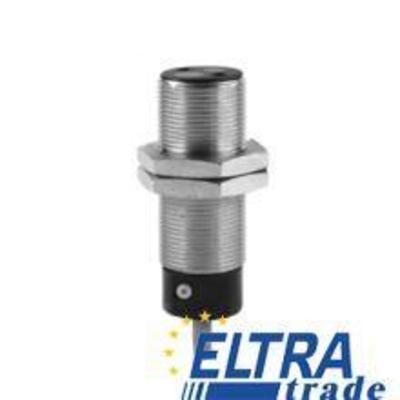

Baumer FZAM 18N6460 Diffuse sensors with intensity difference

Baumer FZAM 18N6460
Item Number: FZAM 18N6460
type intensity difference
light sourcepulsed infrared diode
sensing distance Tw60 ... 430 mm
operating temperature-25 ... +55 °C
157.08
Quantity
-
+
Total price: 157.08
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
output current < 200 mA
current consumption typ. 40 mA
sensing distance Tw 60 ... 430 mm
reverse polarity protection yes
short circuit protection yes
housing material brass nickel plated / PC
width / diameter 18 mm
output indicator LED yellow
light indicator LED green
connection types cable 4 pin, 2 m
light source pulsed infrared diode
output circuit NPN
manufacter SKUFZAM 18N6460
height / length 50 mm
suppression of reciprocal influence yes
response time / release time < 1 ms
sensing distance Tw (with doubling lense) 80 ... 800 mm
front (optics) PC
type intensity difference
voltage drop Vd < 1,8 VDC
current consumption max. (no load) 55 mA
voltage supply range +Vs 10 ... 30 VDC
sensitivity adjustment Teach-in
alignment / soiled lens indicator flashing light indicator
wave length 880 nm
type cylindrical threaded
output function light / dark operate, alarm
operating temperature -25 ... +55 °C
protection class IP 67
