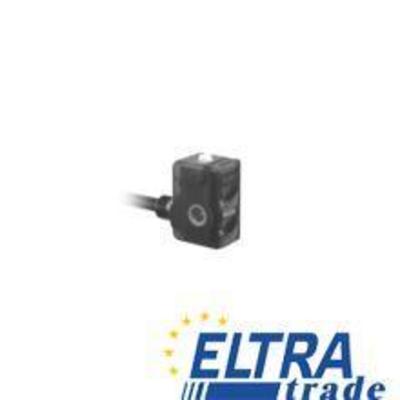

Baumer FZCK 07P6901 Diffuse sensors with intensity difference

Baumer FZCK 07P6901
Item Number: FZCK 07P6901
type intensity difference
light sourcepulsed red LED
sensing distance Tw20 ... 150 mm
operating temperature-20 ... +50 °C
102.30
Quantity
-
+
Total price: 102.30
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
response time / release time < 0,5 ms
output current < 100 mA
short circuit protection yes
output function light / dark operate
reverse polarity protection yes
voltage supply range +Vs 10 ... 30 VDC
light source pulsed red LED
depth 10,8 mm
output indicator LED yellow
sensing distance Tw 20 ... 150 mm
operating temperature -20 ... +50 °C
width / diameter 8 mm
front (optics) PMMA
sensitivity adjustment Teach-in
suppression of reciprocal influence yes
output circuit PNP
housing material plastic (PMMA, MABS, PA)
wave length 660 nm
height / length 16,2 mm
connection types cable rear side, 2 m
alignment / soiled lens indicator flashing light indicator
type intensity difference
current consumption typ. 20 mA
current consumption max. (no load) 25 mA
voltage drop Vd < 1,8 VDC
type rectangular
protection class IP 65
light indicator LED green
manufacter SKUFZCK 07P6901
