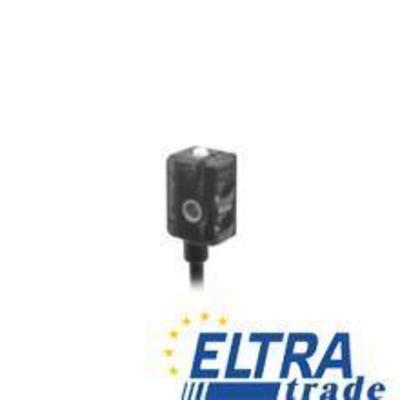

Baumer FZDK 07N6901 Diffuse sensors with intensity difference

Baumer FZDK 07N6901
Item Number: FZDK 07N6901
type intensity difference
light sourcepulsed red LED
sensing distance Tw20 ... 150 mm
operating temperature-20 ... +50 °C
137.94
Quantity
-
+
Total price: 137.94
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
type intensity difference
output function light / dark operate
current consumption typ. 20 mA
light source pulsed red LED
output current < 100 mA
current consumption max. (no load) 25 mA
operating temperature -20 ... +50 °C
output indicator LED yellow
response time / release time < 0,5 ms
protection class IP 65
height / length 16,2 mm
manufacter SKUFZDK 07N6901
housing material plastic (PMMA, MABS, PA)
sensing distance Tw 20 ... 150 mm
suppression of reciprocal influence yes
type rectangular
connection types cable bottom side, 2 m
output circuit NPN
reverse polarity protection yes
light indicator LED green
wave length 660 nm
sensitivity adjustment Teach-in
voltage drop Vd < 1,8 VDC
depth 10,8 mm
alignment / soiled lens indicator flashing light indicator
width / diameter 8 mm
short circuit protection yes
voltage supply range +Vs 10 ... 30 VDC
front (optics) PMMA
