Baumer FZDM 08P1001/S35L Diffuse sensors with intensity difference

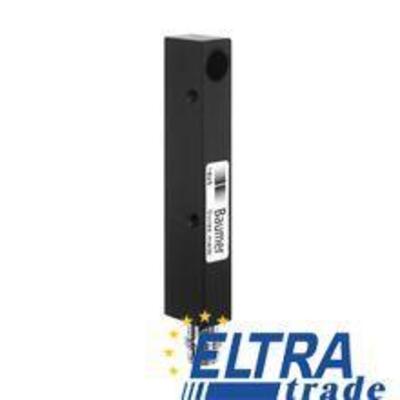

Baumer FZDM 08P1001/S35L
Item Number: FZDM 08P1001/S35L
type intensity difference
light sourcepulsed infrared diode
sensing distance Tw< 40 mm
operating temperature-25 ... +65 °C
191.73
Quantity
-
+
Total price: 191.73
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
output circuit PNP
voltage supply range +Vs 10 ... 30 VDC
width / diameter 8 mm
manufacter SKUFZDM 08P1001/S35L
operating temperature -25 ... +65 °C
current consumption typ. 20 mA
suppression of reciprocal influence yes
light indicator LED red
light source pulsed infrared diode
response time / release time < 1 ms
alignment / soiled lens indicator flashing light indicator
reverse polarity protection yes
output current < 100 mA
connection types connector M8, 3 pin
height / length 58 mm
type intensity difference
wave length 880 nm
type rectangular
short circuit protection yes
voltage drop Vd < 2 VDC
protection class IP 65
output function light operate
front (optics) PC
sensing distance Tw < 40 mm
sensitivity adjustment no
housing material aluminum anodized
current consumption max. (no load) 42 mA
depth 12 mm
