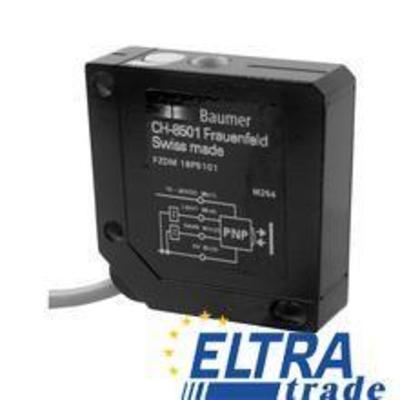

Baumer FZDM 16P5101 Diffuse sensors with intensity difference

Baumer FZDM 16P5101
Item Number: FZDM 16P5101
type intensity difference
light sourcepulsed infrared diode
sensing distance Tw0 ... 400 mm
operating temperature-25 ... +65 °C
184.14
Quantity
-
+
Total price: 184.14
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
output circuit PNP
voltage supply range +Vs 10 ... 30 VDC
short circuit protection yes
output current < 200 mA
output function light / dark operate
depth 50 mm
voltage drop Vd < 1,8 VDC
housing material die-cast zinc
light source pulsed infrared diode
protection class IP 67
suppression of reciprocal influence yes
front (optics) PMMA
wave length 880 nm
height / length 50 mm
sensing distance Tw 0 ... 400 mm
type intensity difference
width / diameter 15,4 mm
current consumption typ. 29 mA
connection types cable 4 pin, 2 m
type rectangular
manufacter SKUFZDM 16P5101
operating temperature -25 ... +65 °C
current consumption max. (no load) 41 mA
reverse polarity protection yes
light indicator LED yellow
alignment / soiled lens indicator flashing light indicator
response time / release time < 1 ms
sensitivity adjustment potentiometer, 270°
