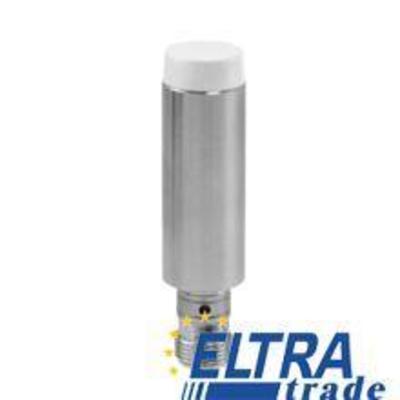

Baumer IFBR 17N33T1/S14L-9 Inductive proximity switch

Baumer IFBR 17N33T1/S14L-9
Item Number: IFBR 17N33T1/S14L-9
mounting typenon-flush
special typehygienic design
nominal sensing distance Sn12 mm
output circuitNPN break function (NC)
operating temperature-40 ... +80 °C
85.03
Quantity
-
+
Total price: 85.03
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
output indicator LED red
cleaning temperature 80 ... +100 °C (30 min/day)
mounting type non-flush
nominal sensing distance Sn 12 mm
housing length 60 mm
output current (at cleaning temperature) < 100 mA
short circuit protection yes
material (sensing face) LCP
protection class IP 68/69K & proTect+
current consumption max. (no load) 10 mA
hysteresis 2 ... 15 % of Sr
voltage supply range +Vs 10 ... 30 VDC
IFBR 17N33T1/S14L-9 dimension 17 mm
connection types connector M12
reverse polarity protection yes
type cylindrical smooth
output circuit NPN break function (NC)
housing material stainless steel 1.4404 (V4A); LSR
switching frequency < 500 Hz
special type hygienic design
output current < 200 mA
voltage drop Vd < 2 VDC
manufacter SKUIFBR 17N33T1/S14L-9
operating temperature -40 ... +80 °C
