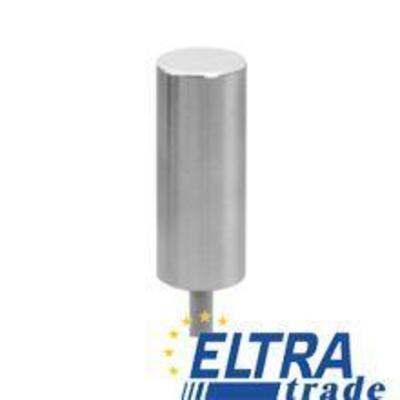

Baumer IFBR 17P37T1/L-9 Inductive proximity switch

Baumer IFBR 17P37T1/L-9
Item Number: IFBR 17P37T1/L-9
mounting typequasi-flush
special typehygienic design
nominal sensing distance Sn8 mm
output circuitPNP break function (NC)
operating temperature-40 ... +80 °C
88.44
Quantity
-
+
Total price: 88.44
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
mounting type quasi-flush
connection types cable PVC, 2 m
short circuit protection yes
housing length 55 mm
output indicator LED red
current consumption max. (no load) 10 mA
IFBR 17P37T1/L-9 dimension 17 mm
output current (at cleaning temperature) < 100 mA
hysteresis 2 ... 15 % of Sr
reverse polarity protection yes
manufacter SKUIFBR 17P37T1/L-9
cleaning temperature 80 ... +100 °C (30 min/day)
output current < 200 mA
nominal sensing distance Sn 8 mm
type cylindrical smooth
voltage drop Vd < 2 VDC
switching frequency < 500 Hz
housing material stainless steel 1.4404 (V4A); LSR
operating temperature -40 ... +80 °C
material (sensing face) LCP
output circuit PNP break function (NC)
voltage supply range +Vs 10 ... 30 VDC
special type hygienic design
protection class IP 68/69K & proTect+
