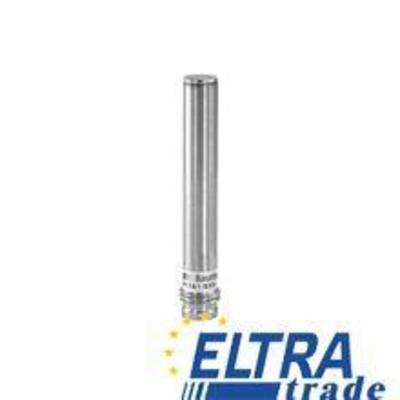

Baumer IFRD 06P37T1/S35 Inductive sensors special versions

Baumer IFRD 06P37T1/S35
Item Number: IFRD 06P37T1/S35
mounting typequasi-flush
special typefull metal housing (DuroProx)
high temperature
nominal sensing distance Sn2 mm
output circuitPNP break function (NC)
operating temperature-25 ... +100 °C
199.21
Quantity
-
+
Total price: 199.21
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
pressure static < 20 bar
operating temperature -25 ... +100 °C
material (sensing face) stainless steel 1.4404 (V4A)
hysteresis 2 ... 20 % of Sr
mounting type quasi-flush
current consumption max. (no load) 20 mA
IFRD 06P37T1/S35 dimension 6,5 mm
nominal sensing distance Sn 2 mm
output circuit PNP break function (NC)
housing length 46 mm
manufacter SKUIFRD 06P37T1/S35
reverse polarity protection yes
protection class IP 69K
voltage drop Vd < 2 VDC
connection types connector M8
special type full metal housing (DuroProx)
high temperature
type cylindrical smooth
output current < 100 mA
housing material stainless steel 1.4404 (V4A)
voltage supply range +Vs 10 ... 30 VDC
short circuit protection yes
switching frequency < 150 Hz
