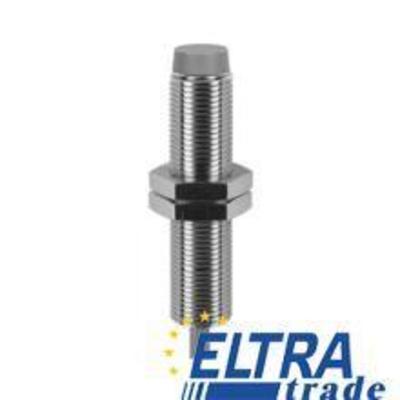

Baumer IFRM 12P33T1/PL Inductive proximity switch

Baumer IFRM 12P33T1/PL
Item Number: IFRM 12P33T1/PL
mounting typenon-flush
special typeOutdoor design
nominal sensing distance Sn6 mm
output circuitPNP break function (NC)
operating temperature-40 ... +80 °C
62.26
Quantity
-
+
Total price: 62.26
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
voltage supply range +Vs 10 ... 30 VDC
mounting type non-flush
material (sensing face) PBT
hysteresis 2 ... 15 % of Sr
output circuit PNP break function (NC)
protection class IP 67
IFRM 12P33T1/PL dimension 12 mm
output current < 200 mA
connection types cable PUR 3 x 0,25, 2 m
type cylindrical threaded
manufacter SKUIFRM 12P33T1/PL
voltage drop Vd < 2 VDC
switching frequency < 2 kHz
short circuit protection yes
housing length 50 mm
special type Outdoor design
output indicator LED red
housing material brass nickel plated
current consumption max. (no load) 10 mA
nominal sensing distance Sn 6 mm
operating temperature -40 ... +80 °C
reverse polarity protection yes
