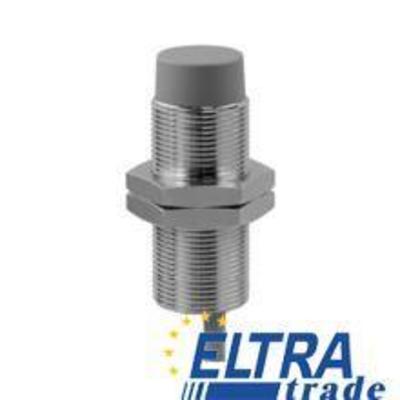

Baumer IFRM 18P13T1/PL Inductive proximity switch

Baumer IFRM 18P13T1/PL
Item Number: IFRM 18P13T1/PL
mounting typenon-flush
special typeOutdoor design
nominal sensing distance Sn12 mm
output circuitPNP make function (NO)
operating temperature-40 ... +80 °C
76.12
Quantity
-
+
Total price: 76.12
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
protection class IP 67
operating temperature -40 ... +80 °C
hysteresis 2 ... 15 % of Sr
housing material brass nickel plated
reverse polarity protection yes
output current < 200 mA
nominal sensing distance Sn 12 mm
housing length 50 mm
output indicator LED red
current consumption max. (no load) 10 mA
IFRM 18P13T1/PL dimension 18 mm
short circuit protection yes
connection types cable PUR 3 x 0,25, 2 m
special type Outdoor design
output circuit PNP make function (NO)
material (sensing face) PBT
switching frequency < 500 Hz
type cylindrical threaded
mounting type non-flush
voltage supply range +Vs 10 ... 30 VDC
voltage drop Vd < 2 VDC
manufacter SKUIFRM 18P13T1/PL
