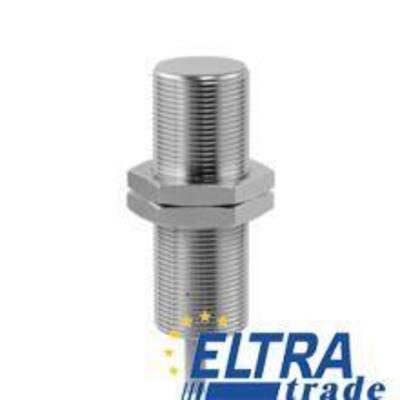

Baumer IFRM 18P17M1/PL Inductive proximity switch

Baumer IFRM 18P17M1/PL
Item Number: IFRM 18P17M1/PL
mounting typeflush
special typeOutdoor design
nominal sensing distance Sn10 mm
output circuitPNP make function (NO)
operating temperature-40 ... +80 °C
78.65
Quantity
-
+
Total price: 78.65
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
nominal sensing distance Sn 10 mm
housing length 50 mm
connection types cable PUR 3 x 0,25, 2 m
short circuit protection yes
output current < 200 mA
voltage supply range +Vs 12 ... 30 VDC
protection class IP 67
IFRM 18P17M1/PL dimension 18 mm
hysteresis 2 ... 15 % of Sr
housing material brass nickel plated
special type Outdoor design
type cylindrical threaded
current consumption max. (no load) 24 mA
manufacter SKUIFRM 18P17M1/PL
voltage drop Vd < 2 VDC
material (sensing face) PBT
reverse polarity protection yes
output indicator LED red
mounting type flush
output circuit PNP make function (NO)
operating temperature -40 ... +80 °C
switching frequency < 400 Hz
