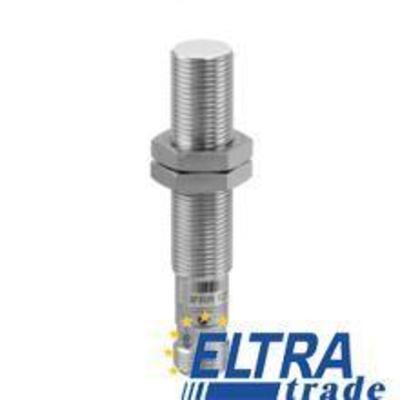

Baumer IFRR 12P17T1/S14L-9 Inductive proximity switch

Baumer IFRR 12P17T1/S14L-9
Item Number: IFRR 12P17T1/S14L-9
mounting typeflush
special typeOutdoor design
Washdown design
nominal sensing distance Sn4 mm
output circuitPNP make function (NO)
operating temperature-40 ... +80 °C
79.86
Quantity
-
+
Total price: 79.86
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
protection class IP 68/69K & proTect+
cleaning temperature 80 ... +100 °C (30 min/day)
reverse polarity protection yes
nominal sensing distance Sn 4 mm
material (sensing face) LCP
mounting type flush
type cylindrical threaded
output current (at cleaning temperature) < 100 mA
voltage supply range +Vs 10 ... 30 VDC
output current < 200 mA
voltage drop Vd < 2 VDC
shock resistance EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
connection types connector M12
output indicator LED red
switching frequency < 1 kHz
housing material stainless steel 1.4404 (V4A); LSR
manufacter SKUIFRR 12P17T1/S14L-9
hysteresis 2 ... 15 % of Sr
operating temperature -40 ... +80 °C
current consumption max. (no load) 10 mA
special type Outdoor design
Washdown design
short circuit protection yes
IFRR 12P17T1/S14L-9 dimension 12 mm
housing length 60 mm
vibration resistance EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
output circuit PNP make function (NO)
