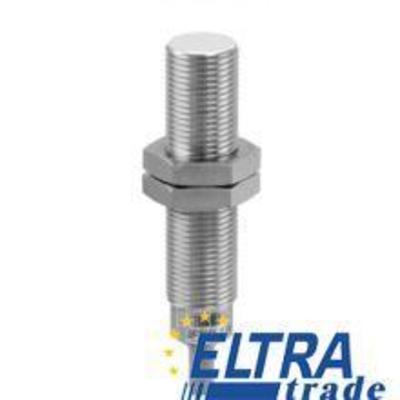

Baumer IFRR 12P37T1/L-9 Inductive proximity switch

Baumer IFRR 12P37T1/L-9
Item Number: IFRR 12P37T1/L-9
mounting typeflush
special typeWashdown design
nominal sensing distance Sn4 mm
output circuitPNP break function (NC)
operating temperature-40 ... +80 °C
84.04
Quantity
-
+
Total price: 84.04
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
hysteresis 2 ... 15 % of Sr
nominal sensing distance Sn 4 mm
output current < 200 mA
short circuit protection yes
operating temperature -40 ... +80 °C
protection class IP 68/69K & proTect+
output indicator LED red
connection types cable PVC, 2 m
output current (at cleaning temperature) < 100 mA
voltage drop Vd < 2 VDC
shock resistance EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
reverse polarity protection yes
special type Washdown design
current consumption max. (no load) 10 mA
cleaning temperature 80 ... +100 °C (30 min/day)
manufacter SKUIFRR 12P37T1/L-9
vibration resistance EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
material (sensing face) LCP
IFRR 12P37T1/L-9 dimension 12 mm
mounting type flush
type cylindrical threaded
housing material stainless steel 1.4404 (V4A); LSR
housing length 55 mm
voltage supply range +Vs 10 ... 30 VDC
output circuit PNP break function (NC)
switching frequency < 1 kHz
