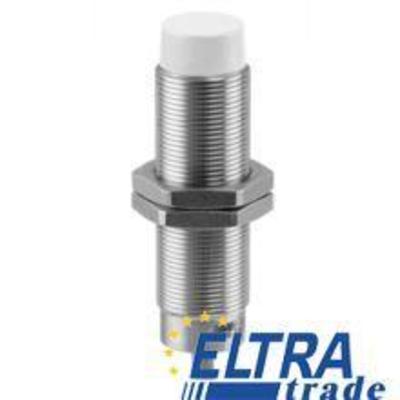

Baumer IFRR 18N13T1/L-9 Inductive proximity switch

Baumer IFRR 18N13T1/L-9
Item Number: IFRR 18N13T1/L-9
mounting typenon-flush
special typeWashdown design
nominal sensing distance Sn12 mm
output circuitNPN make function (NO)
operating temperature-40 ... +80 °C
88.00
Quantity
-
+
Total price: 88.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
housing length 55 mm
manufacter SKUIFRR 18N13T1/L-9
material (sensing face) LCP
type cylindrical threaded
output current (at cleaning temperature) < 100 mA
housing material stainless steel 1.4404 (V4A); LSR
hysteresis 2 ... 15 % of Sr
protection class IP 68/69K & proTect+
output circuit NPN make function (NO)
current consumption max. (no load) 10 mA
short circuit protection yes
reverse polarity protection yes
mounting type non-flush
special type Washdown design
connection types cable PVC, 2 m
IFRR 18N13T1/L-9 dimension 18 mm
voltage supply range +Vs 10 ... 30 VDC
vibration resistance EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
switching frequency < 500 Hz
shock resistance EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
output indicator LED red
cleaning temperature 80 ... +100 °C (30 min/day)
output current < 200 mA
nominal sensing distance Sn 12 mm
operating temperature -40 ... +80 °C
voltage drop Vd < 2 VDC
